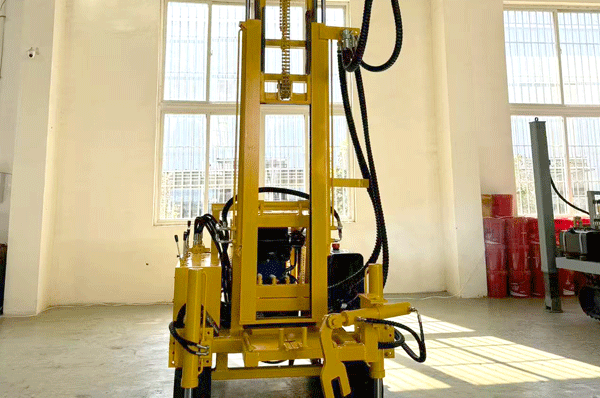

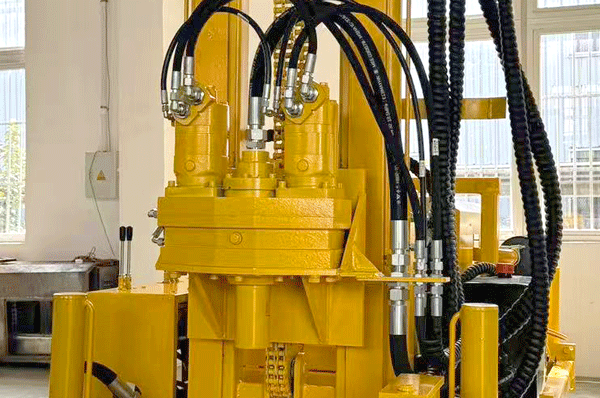

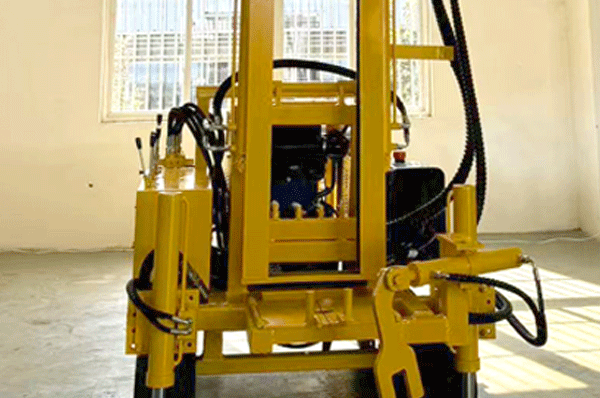

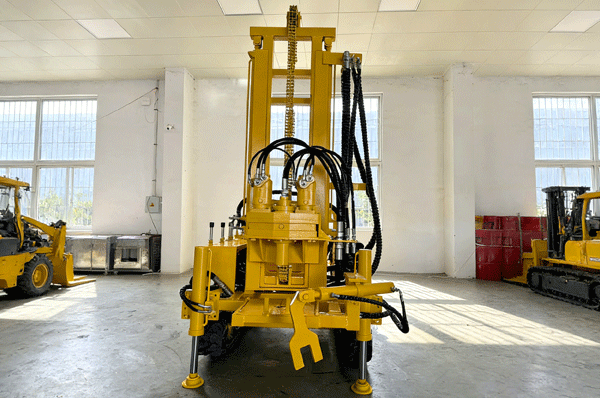

JTSQ-260 Water Well Drill Rig

Overview

The JTSQ-260 water well drill rig is a compact crawler-type machine built for  15-260 m drilling in rural water supply, agricultural irrigation and light  geotechnical projects. With a 100-400 mm hole diameter range, 22 HP rig power,  18-25 bar air compressor compatibility and 16 t lifting force, it is suited  to small and mid-depth drilling jobs across mixed ground conditions.

Specifications

Key Features

1. Reaches 260 m Depth

With a drilling depth range of 15-260 m, the JTSQ-260 covers shallow through  mid-depth water well work in one machine. It suits contractors who need more  reach than small entry-level rigs without stepping up to a heavy deep-well  platform.

2. Up to 400 mm Holes

A 100-400 mm drilling hole diameter range gives the rig flexibility for  different bore sizes, from smaller water supply wells to larger holes that  need extra casing space. That makes it more adaptable across rural and farm  drilling jobs.

3. 16 t Lift Capacity

The 16 t lifting force gives the machine solid pullback ability for routine  drill string handling on 260 m-class work. It adds useful margin for rod  lifting and daily drilling operations compared with lighter small-site rigs.

4. Runs on 18-25 bar

Compatibility with 18-25 bar air compressors makes the JTSQ-260 suitable for  air drilling setups used in mixed formations. This helps it cover a wider  range of site conditions while staying within a practical compressor range for  small contractor jobs.

5. Three Pipe Sizes

The rig supports 60/76/89 mm drill pipe options, giving users flexibility to  match tooling to drilling depth, bore size and working conditions. Combined  with 2-3 m pipe lengths, it offers practical setup options for different site  requirements.

Get a Quote

Contact us for pricing, specifications and configuration details of the  JTSQ-260 water well drill rig.
