JTSJ-150 Water Well Drill Rig

Overview

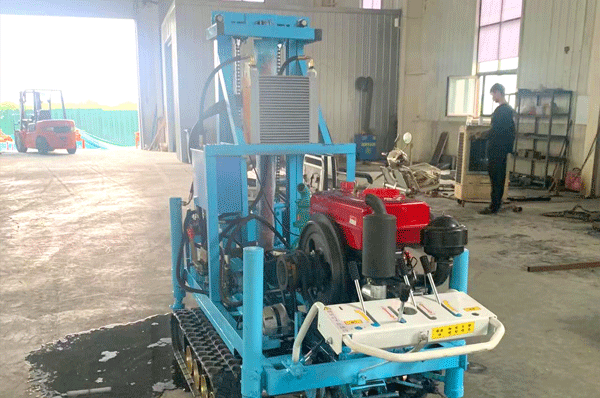

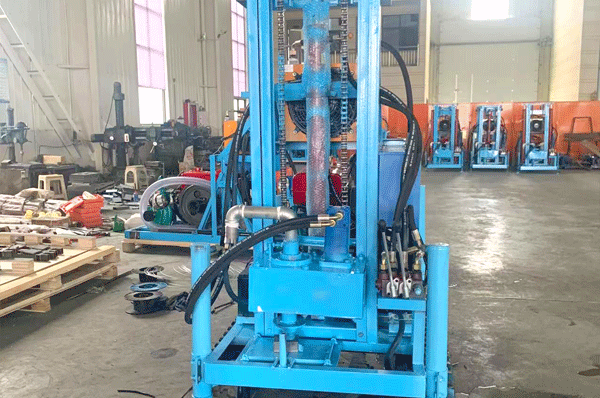

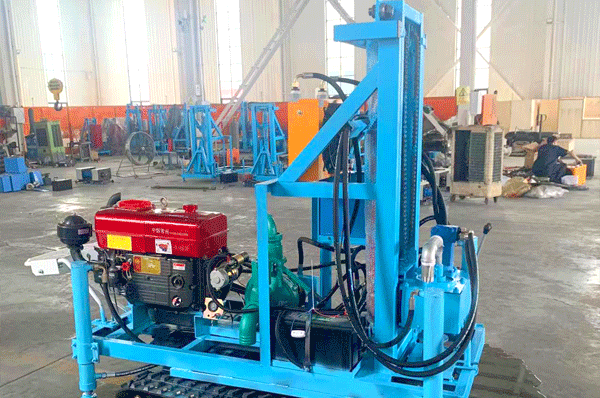

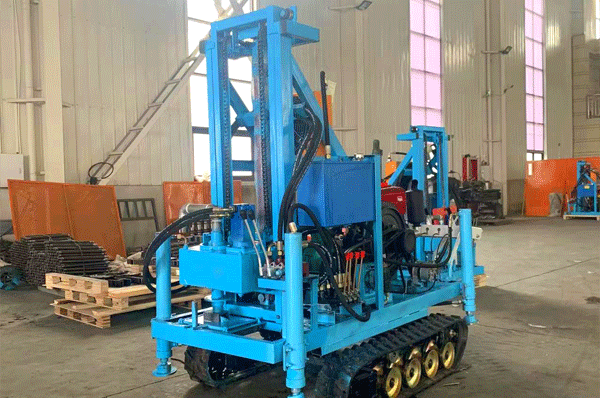

The JTSJ-150 hydraulic water well drill rig is built for 0-150 m drilling in  rural water wells, agricultural irrigation and engineering dewatering  projects. With a 22 HP diesel engine, a 100-300 mm final hole range, 65 m³/h  water pump flow and a 560 kg machine weight, it suits small-scale jobs that  need easy transport, simple setup and low operating labor.

Specifications

Key Features

1. Reaches 150 m Depth

With a drilling depth range of 0-150 m, the JTSJ-150 is suited to shallow and  mid-depth water well projects for farms, villages and light site work. It  fits jobs that do not need a large drilling rig but still require practical  well depth.

2. One-Person Setup

The machine is rated for 1 person operation, making it a practical choice for  small crews and owner-operators. That helps reduce labor demand on projects  where a larger multi-person drilling team would be unnecessary.

3. Up to 300 mm Holes

A 300 mm opening diameter and 100-300 mm final hole range give the rig enough  flexibility for different well sizes. This makes it suitable for light-duty  domestic, irrigation and dewatering drilling applications.

4. 560 kg Compact Build

With an overall weight of 560 kg, the JTSJ-150 is much easier to move and set  up than larger drilling rigs. That lighter build makes transport and jobsite  repositioning more manageable on smaller projects.

5. 22 HP Diesel Drive

A 22 HP power unit gives the rig enough engine output for small-scale drilling  work while keeping the machine compact. It is a sensible fit for users who  want basic drilling capability without stepping up to a much heavier machine.

Get a Quote

Contact us for pricing, specifications or configuration details of the JTSJ-150  hydraulic water well drill rig.
