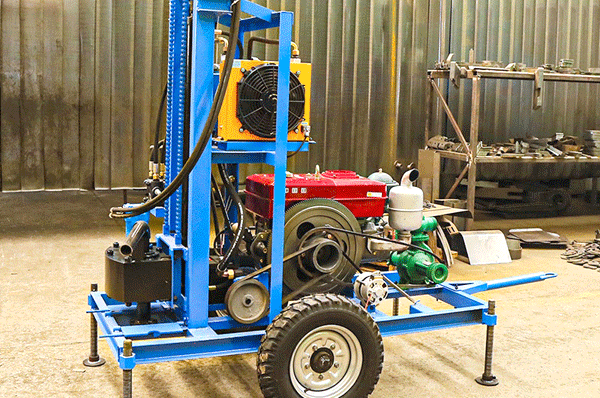

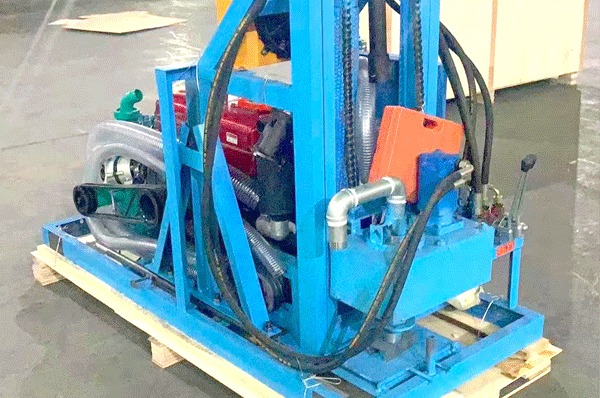

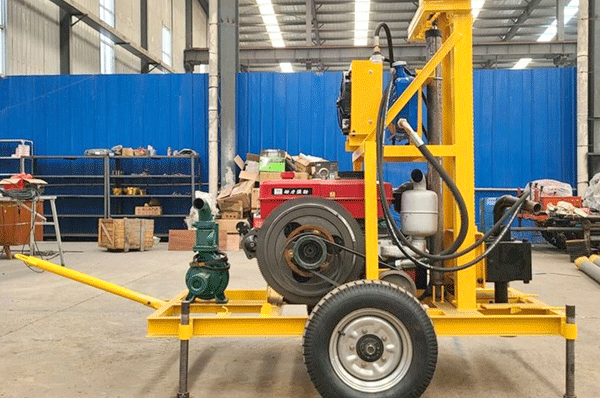

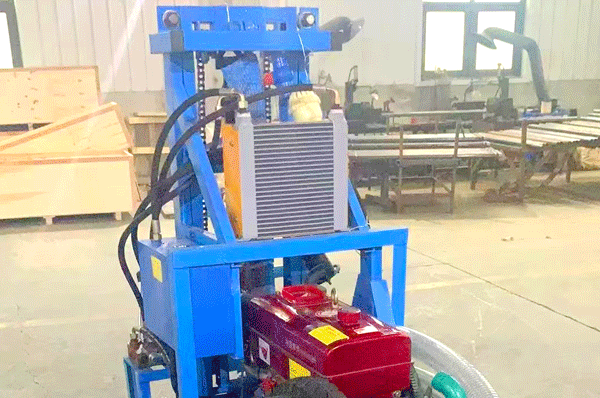

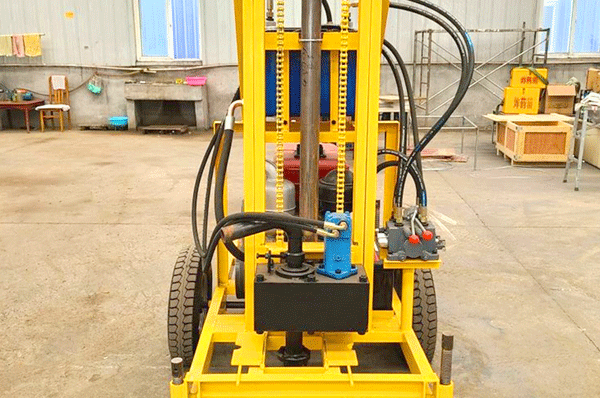

JTXY-150 Water Well Drill Rig

Overview

The JTXY-150 hydraulic water well drill rig is built for 0-150 m drilling in  rural water wells, agricultural irrigation wells and ground source heat pump  projects. With a 22 HP diesel engine, a 100-300 mm final hole range, 65 m³/h  water pump flow and a 560 kg machine weight, it suits small-scale jobs that  need easy transport, simple setup and low operating labor.

Specifications

Key Features

1. Reaches 150 m Depth

With a drilling depth range of 0-150 m, the JTXY-150 is suited to shallow and  mid-depth water well projects for farms, villages and small building sites.  It fits jobs that do not need a large crawler rig but still require practical  well depth.

2. One-Person Setup

The machine is rated for 1 person operation, making it a practical option for  small crews and owner-operators. That helps reduce labor demand on projects  where a larger multi-person drilling team is unnecessary.

3. Up to 300 mm Holes

A 300 mm opening diameter and 100-300 mm final hole range give the rig enough  flexibility for different well sizes. This makes it suitable for light-duty  domestic, irrigation and heat pump drilling applications.

4. 560 kg Portable

With an overall weight of 560 kg, the JTXY-150 is much easier to move than  larger drilling rigs. That lighter build makes transport, relocation and setup  more manageable on smaller work sites.

5. 65 m³/h Pump Flow

A built-in water pump flow of 65 m³/h supports cuttings removal and helps keep  drilling work moving in softer formations. This gives the rig a practical  support function for small-scale well drilling operations.

Get a Quote

Contact us for pricing, specifications or configuration details of the JTXY-150  hydraulic water well drill rig.
