PRP: 800 kW / 1000 kVA
Standby: 880 kW / 1100 kVA
Engine: YC6C1320-D31
Back to List
800kW Prime Power | Robust Energy for Construction, Mining & Large-Scale Manufacturing
Engine: Yuchai YC6C1320-D31 6-Cylinder In-Line Turbocharged
Certifications: ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI
Scalability: Parallel Capability up to 8 Units

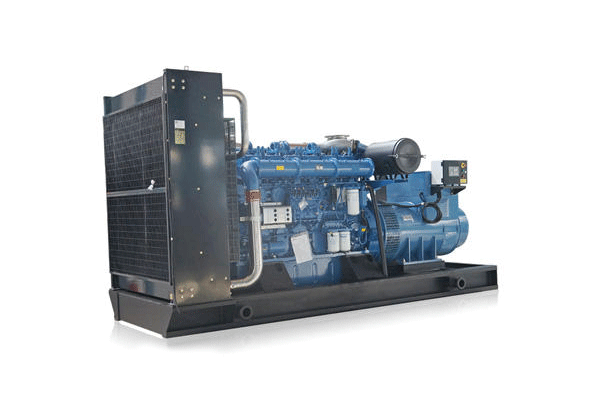

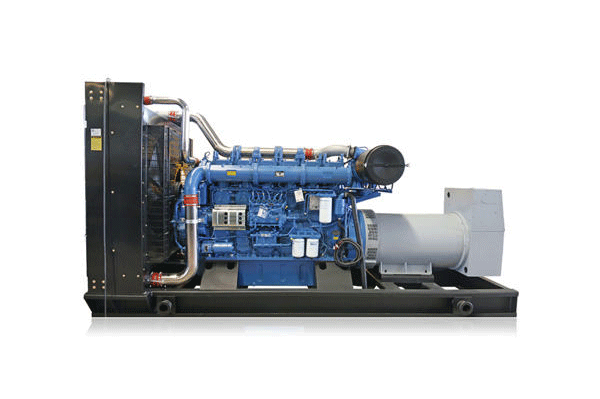

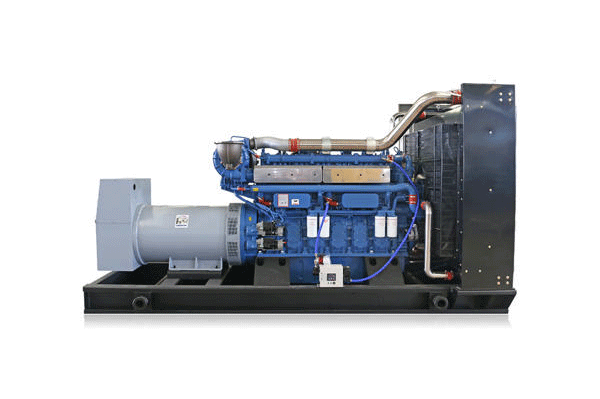

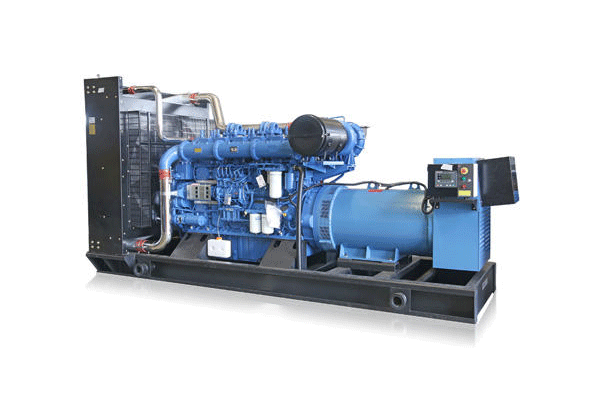

The JT-800KW is a high-performance industrial generator built on the reliable Yuchai YC6C1320-D31 platform. Delivering 800kW of continuous prime power, it is engineered for the rigorous demands of construction sites, mining auxiliary stations, and large-scale manufacturing facilities. With a 39.584L displacement and 5800 N·m of peak torque, this unit provides the consistent, heavy-load stability required for 24/7 operations across global markets.
| Category | Specification |
|---|---|
| Model | JT‑800KW |
| Prime Power | 800 kW / 1000 kVA |
| Standby Power | 880 kW / 1100 kVA |
| Voltage | 400/230 V |
| Rated Current | 1440 A |
| Frequency | 50 Hz |
| Engine Model | Yuchai YC6C1320‑D31, 6‑Cylinder In‑Line Turbocharged |
| Displacement | 39.584 L |
| Bore × Stroke | 170 mm × 230 mm |
| Compression Ratio | 14.5:1 |
| Cycle Type | 4‑Cycle Diesel |
| Engine Rated Speed | 1500 RPM |
| Peak Torque @1500RPM | 5800 N·m |
| Cooling System | Water‑Cooled |
| Engine Oil Capacity | 110 L |
| Start Motor Voltage | 24V DC |
| Alternator Brand & Type | Stamford/Marathon, Brushless, Self‑exciting, H‑Class Insulation, 3‑Phase |
| Phase & Connection | 3‑Phase 4‑Wire |
| Power Factor | 0.8 (lagging) |
| Insulation Class | Class H |
| Protection Grade | IP21 |
| Total Harmonic Distortion (THD) | <5% |
| Fuel Consumption (100% Full Load) | 218‑226 g/kW·h |
| Fuel Tank Capacity | 1500 L / ≈13‑hr @ 75% Load |
| Scheduled Maintenance Interval | 500 Working Hours |
| Noise Level | 80‑82 dB(A) @ 1 Meter |
| Max Operating Altitude | ≤ 1000 m |
| Max Parallel Units | Up to 8 Units (IEC 8528‑5) |
| ATS Compatibility | Yes |
| Transport Dimensions | 4800 × 2200 × 2600 mm |
| Overall Weight | 9.5 t |
| Certifications | ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI |
| Lead Time | 45‑50 Working Days + 40‑50 Days Ocean Freight |
| Payment Term | 30% Advance, 70% Before Shipment |
Featuring a 10% overload capability for one hour, the JT-800KW easily manages the high inrush currents typical of crushers, mixers, and large motor starts on construction sites, ensuring no power interruptions during peak demand.
Superior torque reserve minimizes voltage dips during frequent load switching. This protects sensitive onsite electronics and prevents protection relay false-tripping in mining and heavy industrial applications.
The 1500L integral fuel tank ensures extended operation. For off-grid mining sites with limited fuel logistics, this reduces the frequency of delivery and simplifies fuel procurement cycles.
With THD<5%, the Stamford/Marathon alternator provides clean, stable power essential for PLC systems, banking servers, and precision manufacturing equipment, shielding them from harmonic interference.
Extended maintenance cycles directly translate to lower operational costs and reduced downtime, a critical advantage for time-sensitive construction and mining projects operating on tight deadlines.
Integrated RS485 interfaces allow for seamless SCADA/BMS integration, enabling remote, centralized monitoring for multi-point distributed industrial sites without the need for on-site technicians.
