PRP: 200 kW / 250 kVA
Standby: 220 kW / 275 kVA
Engine: YC6MK350L-D20
Back to List
200kW Prime Power | Flexible & Efficient Power for Small-to-Medium Industrial Sites
Engine: Yuchai YC6MK350L-D20 6-Cylinder
Output: 200kW Prime / 220kW Standby
Portability: Compact 4.6t Weight
Certifications: Global Standard Compliance (ISO, CE, SONCAP, etc.)

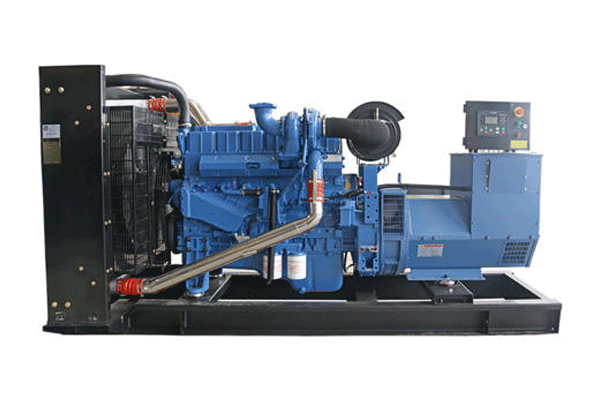

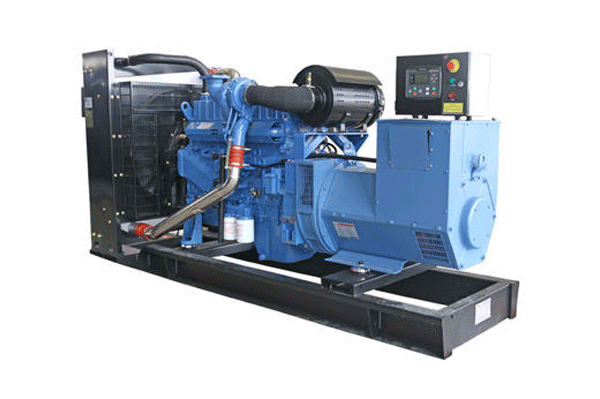

The JT-200KW is a highly mobile and cost-effective industrial generator powered by the proven Yuchai YC6MK350L-D20 engine. Engineered for small factories, urban construction teams, and mining micro-auxiliary stations, this model combines compact design with excellent load stability. With its low noise profile and 500-hour maintenance cycle, it serves as the perfect solution for projects requiring efficient, continuous power in space-constrained or noise-sensitive environments. Tailored for small-scale mixed-load projects, this generator delivers reliable power for small production lines and HVAC systems. It prevents the operational overhead of oversized generators while maintaining full site productivity. The MK-series engine provides 1260 N·m of peak torque, ensuring stable voltage output even when multiple small machines or pumps start simultaneously—effectively preventing circuit breaker trips in workshop environments. Weighing just 4.6 tons with a compact footprint, the JT-200KW is designed for rapid deployment. It can be moved via standard logistics vehicles, saving on heavy-lift equipment costs for dispersed work teams. With noise controlled between 72-74 dB(A), this unit meets strict urban sound regulations. It is ideal for continuous operation near residential areas and commercial offices without disturbing neighbors or triggering complaints. The 550L fuel tank enables 14 hours of continuous operation at 75% load, perfectly aligning with a standard working shift. This eliminates mid-day downtime and ensures uninterrupted operational performance. Factory-direct pricing, customized configurations, and full global logistics support. Guaranteed response within 48 business hours.Product Overview
Technical Specifications
Category Specification Model JT‑200KW Prime Power 200 kW / 250 kVA Standby Power 220 kW / 275 kVA Voltage 400/230 V Rated Current 360 A Frequency 50 Hz Engine Model Genuine Yuchai YC6MK350L‑D20, 6‑Cylinder In‑Line Turbocharged Displacement 10.338 L Bore × Stroke 119 mm × 154 mm Compression Ratio 16.5:1 Cycle Type 4‑Cycle Diesel Engine Rated Speed 1500 RPM Peak Torque @1500RPM 1260 N·m Cooling System Water‑Cooled Engine Oil Capacity 26 L Start Motor Voltage 24V DC Alternator Brand & Type Stamford/Marathon, Brushless, Self‑exciting, H‑Class Insulation, 3‑Phase Phase & Connection 3‑Phase 4‑Wire Power Factor 0.8 (lagging) Insulation Class Class H Protection Grade IP21 Total Harmonic Distortion (THD) <5% Fuel Consumption (100% Full Load) 210‑218 g/kW·h Fuel Tank Capacity 550 L / ≈14‑hr @ 75% Load Scheduled Maintenance Interval 500 Working Hours Noise Level 72‑74 dB(A) @ 1 Meter Max Operating Altitude ≤ 1000 m Max Parallel Units Up to 8 Units (IEC 8528‑5) ATS Compatibility Yes Transport Dimensions 4800 × 2000 × 2400 mm Overall Weight 4.6 t Certifications ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI Lead Time 45‑50 Working Days + 40‑50 Days Ocean Freight Payment Term 30% Advance, 70% Before Shipment Core Advantages
1. Optimized 200kW Prime Power
2. Rapid Torque Response
3. High Mobility & Ease of Transport
4. Urban-Friendly Noise Levels
5. 14-Hour Continuous Shift Support
