JT-1000KW Yuchai Industrial Generator

1000kW Prime Power | Reliable Energy for Manufacturing, Mining & Railway Infrastructure

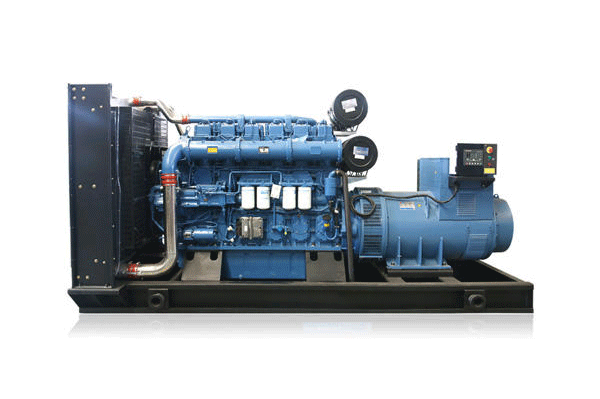

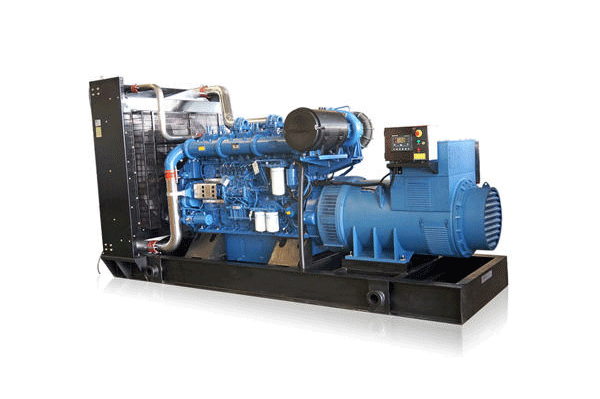

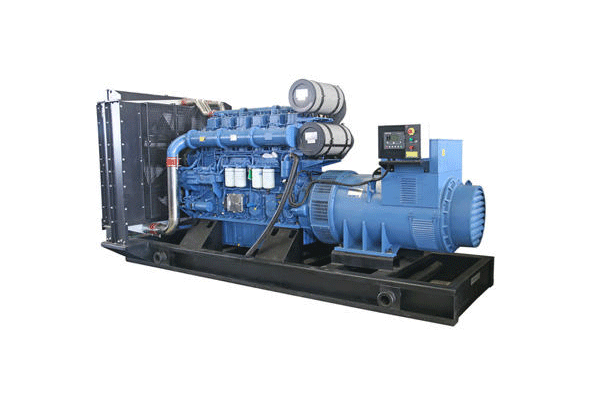

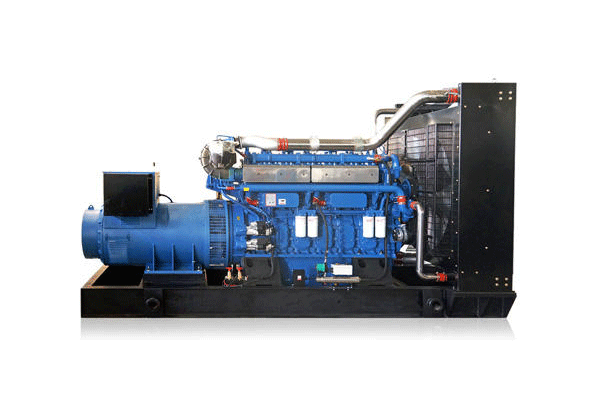

JT-1000KW 1250kVA Yuchai generator for industrial mining, railway and manufacturing power supply

Engine: Yuchai YC12VC1680-D31 12-Cylinder V-Type Turbocharged
Certifications: ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI
Reliability: 500-Hour Maintenance Interval & SCADA-Ready Remote Monitoring

Product Overview

The JT-1000KW is a robust 1250kVA industrial generator designed for mission-critical baseload power. Powered by the high-performance Yuchai YC12VC1680-D31 12-cylinder V-type engine, this unit delivers consistent 1000kW prime power, making it the ideal choice for medium-to-large manufacturing plants, mining auxiliary stations, and railway systems. With its 79.17L displacement and 8600 N·m peak torque, it provides the reliability needed for high-demand environments across Europe, Africa, and Southeast Asia.

Technical Specifications

Category	Specification
Model	JT‑1000KW
Prime Power	1000 kW / 1250 kVA
Standby Power	1100 kW / 1375 kVA
Voltage	400/230 V
Rated Current	1800 A
Frequency	50 Hz
Engine Model	Yuchai YC12VC1680‑D31, 12‑Cylinder V‑Type Turbocharged
Displacement	79.17 L
Bore × Stroke	170 mm × 230 mm
Compression Ratio	14.5:1
Cycle Type	4‑Cycle Diesel
Engine Rated Speed	1500 RPM
Peak Torque @1500RPM	8600 N·m
Cooling System	Water‑Cooled
Engine Oil Capacity	165 L
Start Motor Voltage	24V DC
Alternator Brand & Type	Stamford/Marathon, Brushless, Self‑exciting, H‑Class Insulation, 3‑Phase
Phase & Connection	3‑Phase 4‑Wire
Power Factor	0.8 (lagging)
Insulation Class	Class H
Protection Grade	IP21
Total Harmonic Distortion (THD)	<5%
Fuel Consumption (100% Full Load)	220‑228 g/kW·h
Fuel Tank Capacity	2100 L / ≈14‑hr @ 75% Load
Scheduled Maintenance Interval	500 Working Hours
Noise Level	82‑84 dB(A) @ 1 Meter
Max Operating Altitude	≤ 1000 m
Max Parallel Units	Up to 8 Units (IEC 8528‑5)
ATS Compatibility	Yes
Transport Dimensions	5500 × 2300 × 2700 mm
Overall Weight	11.8 t
Certifications	ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI
Lead Time	45‑50 Working Days + 40‑50 Days Ocean Freight
Payment Term	30% Advance, 70% Before Shipment

Core Advantages

1. 1MW Baseline Coverage

This 1000kW standalone unit is perfectly sized for medium-to-large factory baseloads. By eliminating the need for paralleling multiple smaller units, you simplify your electrical wiring, commissioning, and long-term maintenance contracts.

2. 8600 N·m Torque Reserve

Superior torque reserve allows the generator to handle sudden inrush currents from large motor startups (conveyor belts, crushers) without voltage dips or protection relay trips, ensuring continuous production stability.

3. 14-Hour Operational Autonomy

With a 2100L fuel tank, the unit provides 14+ hours of runtime at 75% load. This is critical for remote mining or railway sites where fuel logistics are complex, as it allows for less frequent, optimized fuel delivery schedules.

4. Premium Power Quality (THD<5%)

The high-spec Stamford/Marathon alternator ensures harmonic distortion remains below 5%. This protects sensitive equipment such as banking servers, UPS systems, and precision factory electronics from electrical interference.

5. 500-Hour Maintenance Efficiency

The industry-leading 500-hour service interval minimizes planned downtime. For round-the-clock operations, this significantly reduces labor costs and lost production time.

6. Smart Diagnostics for Unmanned Sites

Integrated SCADA/BMS-compatible RS485 interfaces enable remote monitoring and fault reporting. It is the perfect solution for unmanned industrial, mining, or railway relay stations requiring proactive alarm management.
