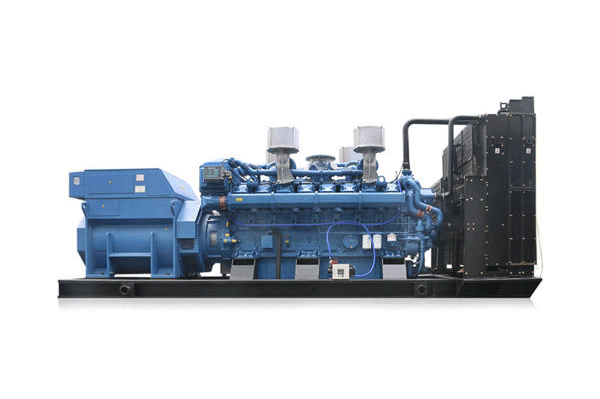

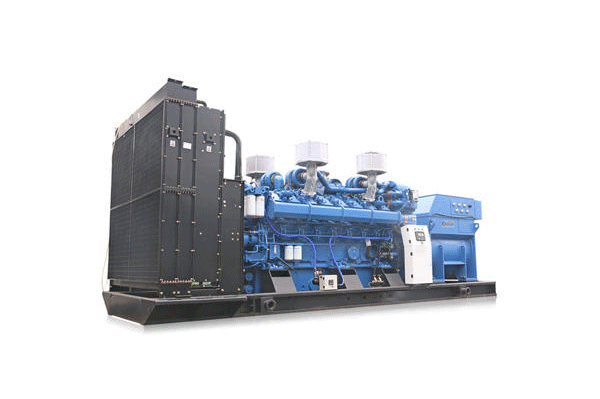

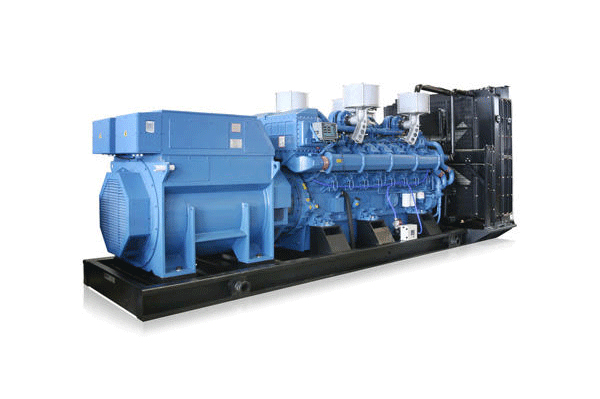

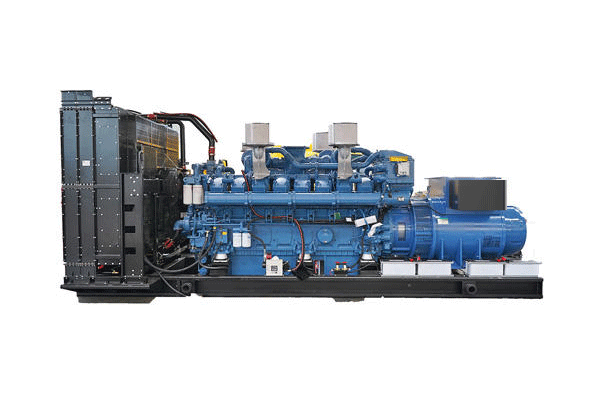

JT-2000KW Yuchai Industrial Generator

2000kW Prime Power | High-Performance Energy for Mining, Oil & Gas, and Heavy Industry

JT-2000KW 2500kVA Yuchai generator for heavy-industrial mining and oil-gas applications

Engine: Yuchai YC16VC3300-D31 16-Cylinder V-Type Turbocharged
Certifications: ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI
Scalability: Parallel Capability up to 8 Units (16MW Total Capacity)

Product Overview

The JT-2000KW is an industrial-grade power solution engineered for continuous baseload operation in demanding environments. Featuring the Yuchai YC16VC3300-D31 16-cylinder V-type engine, this generator delivers 2000kW of prime power with exceptional thermal stability and torque reserve. Designed for large-scale manufacturing, mining, and critical infrastructure, it offers a single-unit alternative to complex multi-generator configurations, significantly reducing installation and maintenance overhead.

Technical Specifications

Category	Specification
Model	JT‑2000KW
Prime Power	2000 kW / 2500 kVA
Standby Power	2200 kW / 2750 kVA
Voltage	400 V
Rated Current	3600 A
Frequency	50 Hz
Engine Model	Yuchai YC16VC3300‑D31, 16‑Cylinder V‑Type Turbocharged
Displacement	105.56 L
Bore × Stroke	170 mm × 230 mm
Compression Ratio	14.5:1
Cycle Type	4‑Cycle Diesel
Engine Rated Speed	1500 RPM
Peak Torque @1500RPM	13200 N·m
Cooling System	Water‑Cooled
Engine Oil Capacity	220 L
Start Motor Voltage	24V DC
Alternator Brand & Type	Stamford/Marathon, Brushless, Self‑exciting, H‑Class Insulation, 3‑Phase
Phase & Connection	3‑Phase 4‑Wire
Power Factor	0.8 (lagging)
Insulation Class	Class H
Protection Grade	IP21
Total Harmonic Distortion (THD)	<5%
Fuel Consumption (100% Full Load)	224‑232 g/kW·h
Fuel Tank Capacity	2600 L / ≈18‑hr @ 75% Load
Scheduled Maintenance Interval	500 Working Hours
Noise Level	84‑86 dB(A) @ 1 Meter
Max Operating Altitude	≤ 1000 m
Max Parallel Units	Up to 8 Units (IEC 8528‑5)
ATS Compatibility	Yes
Transport Dimensions	7200 × 2600 × 3000 mm
Overall Weight	17.2 t
Certifications	ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI
Lead Time	45‑50 Working Days + 40‑50 Days Ocean Freight
Payment Term	30% Advance, 70% Before Shipment

Core Advantages

1. Megawatt-Scale Power Consolidation

A single 2000kW unit replaces complex multi-generator paralleling systems. This minimizes points of failure, streamlines commissioning documentation, and simplifies site-wide maintenance contracts.

2. Heavy-Duty 16-Cylinder Performance

The YC16VC3300-D31 delivers 13,200 N·m of peak torque. Its V-16 configuration provides natural primary balance, minimizing vibrational stress on alternator bearings and foundations during sustained full-load operation in mining or oil-gas fields.

3. 18-Hour Continuous Autonomy

With a 2600L integral fuel tank, this unit supports 18 hours of continuous operation at 75% load. This extended range provides critical flexibility for logistics-constrained sites like remote mining pits or off-grid port terminals.

4. Industrial-Grade Power Quality

Equipped with a Stamford/Marathon brushless alternator, the system maintains THD below 5% even under heavy inductive loading, ensuring stability for VFD-driven machinery, mining equipment, and UPS systems.

5. Modular Expansion Path (Up to 16MW)

Compliant with IEC 8528-5, these units can be paralleled up to 8 units. As your project expands—be it a mining pit deepening or a data center adding capacity—your power infrastructure scales incrementally without decommissioning original assets.

6. Centralized Fault Management

Integrated LCD diagnostics and SCADA-ready communication interfaces allow central control rooms to monitor real-time parameters and fault history, enabling predictive maintenance without the need for on-site personnel.
