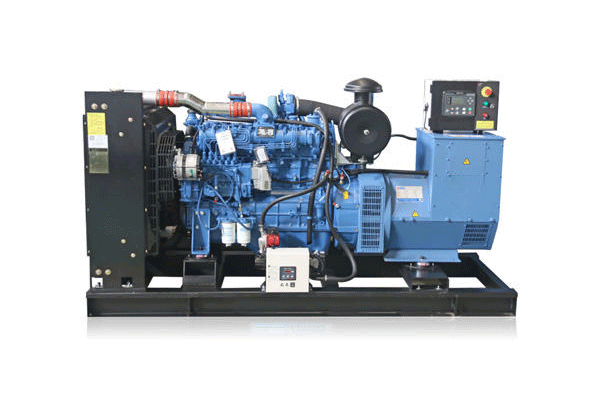

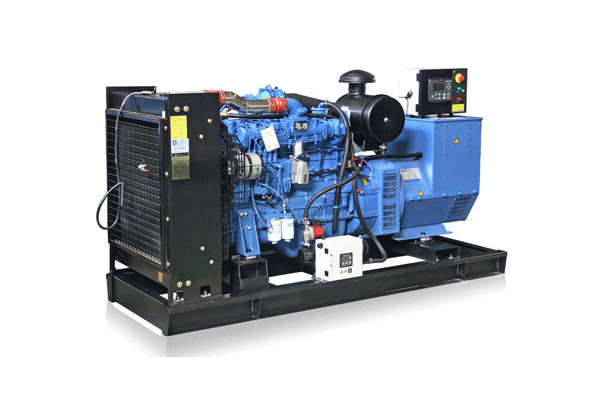

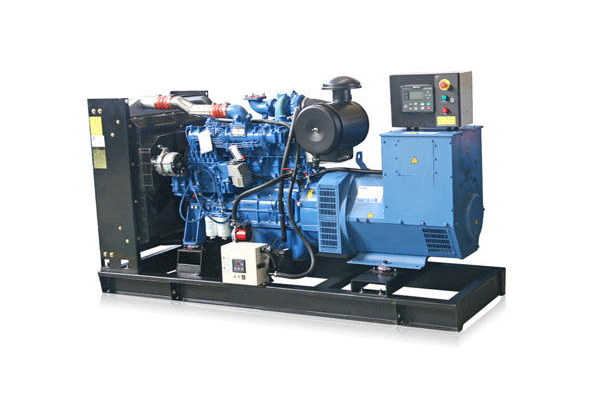

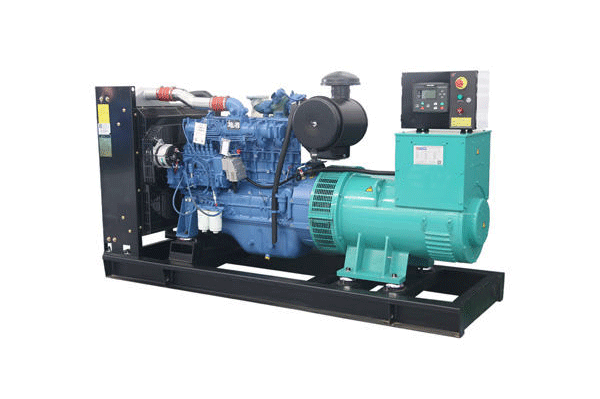

JT-150KW Yuchai Industrial Generator

150kW Prime Power | Cost-Effective & Reliable Energy for Small-Scale Industrial & Community Needs

JT-150KW 187.5kVA Yuchai generator for workshops, clinics, and rural construction power supply

Engine: Yuchai YC6A245-D30 6-Cylinder
Output: 150kW Prime / 165kW Standby
Noise Level: Ultra-Quiet 70-72 dB(A)
Certifications: Global Standard Compliance (ISO, CE, SONCAP, etc.)

Product Overview

The JT-150KW is an ideal power solution for budget-conscious projects, powered by the mature and robust Yuchai YC6A245-D30 engine. Perfectly sized for small workshops, rural construction, clinics, and local community facilities, this compact generator provides stable performance with low operating costs. Its combination of high environmental adaptability, ease of transport, and whisper-quiet operation makes it the premier choice for small-to-medium scale applications in emerging markets.

Technical Specifications

Category	Specification
Model	JT-150KW
Prime Power	150 kW / 187.5 kVA
Standby Power	165 kW / 206.25 kVA
Voltage	400/230 V
Rated Current	270 A
Frequency	50 Hz
Engine Model	Genuine Yuchai YC6A245-D30, 6-Cylinder In-Line Turbocharged
Displacement	7.255 L
Bore × Stroke	108 mm × 132 mm
Compression Ratio	17.5:1
Cycle Type	4-Cycle Diesel
Engine Rated Speed	1500 RPM
Peak Torque @1500RPM	980 N·m
Cooling System	Water-Cooled
Engine Oil Capacity	20 L
Start Motor Voltage	24V DC
Alternator Brand & Type	Stamford/Marathon, Brushless, Self-exciting, H-Class Insulation, 3-Phase
Phase & Connection	3-Phase 4-Wire
Power Factor	0.8 (lagging)
Insulation Class	Class H
Protection Grade	IP21
Total Harmonic Distortion (THD)	<5%
Fuel Consumption (100% Full Load)	208-216 g/kW·h
Fuel Tank Capacity	420 L / ≈15-hr @ 75% Load
Scheduled Maintenance Interval	500 Working Hours
Noise Level	70-72 dB(A) @ 1 Meter
Max Operating Altitude	≤ 1000 m
Max Parallel Units	Up to 8 Units (IEC 8528-5)
ATS Compatibility	Yes
Transport Dimensions	4400 × 1900 × 2300 mm
Overall Weight	3.8 t
Certifications	ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI
Lead Time	45-50 Working Days + 40-50 Days Ocean Freight
Payment Term	30% Advance, 70% Before Shipment

Core Advantages

1. Optimal Price-to-Performance Ratio

The 150kW capacity strikes the perfect balance for small projects. It provides reliable continuous power without the financial burden of over-sized equipment, making it the most cost-effective choice for clinics, workshops, and rural services.

2. Proven Yuchai A-Series Reliability

The A-series engine is engineered for longevity in challenging climates. Its superior heat dissipation and robust structure ensure consistent performance in high-temperature and humid regions, minimizing downtime where professional service is scarce.

3. 15-Hour Full-Shift Runtime

The 420L integrated tank delivers 15 hours of operation at 75% load, allowing your team to complete a full working day without the hassle of refueling—a key benefit for remote off-grid mining and construction sites.

4. Whisper-Quiet Operation

With noise levels as low as 70-72 dB(A), this unit is "neighbor-friendly." It can be safely deployed near clinics, schools, and residential communities without violating noise ordinances or causing disturbances.

5. High Portability

Weighing only 3.8 tons and featuring a compact design, the JT-150KW can be easily transported using standard regional logistics vehicles, significantly lowering your site mobilization and setup costs.
