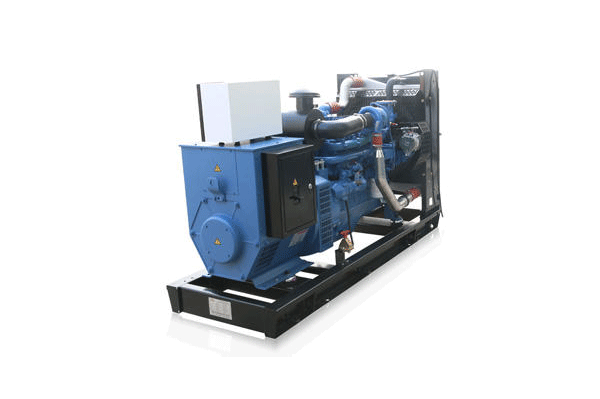

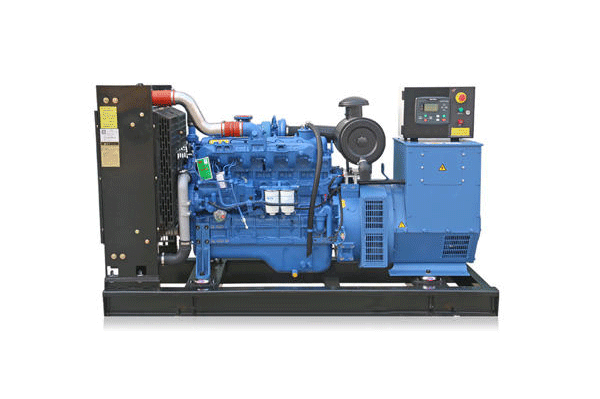

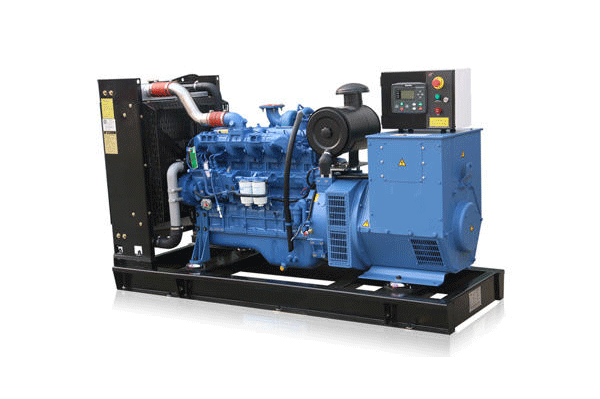

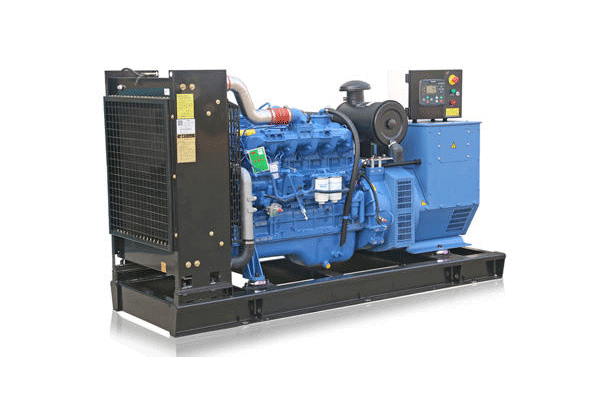

JT-100KW Yuchai Industrial Generator

100kW Prime Power | Premium Entry-Level Performance for Telecom, Retail, and Small Industrial Sites

JT-100KW 125kVA Yuchai generator for telecom base stations, construction, and commercial backup

Engine: Yuchai YC4A190-D30 4-Cylinder
Output: 100kW Prime / 110kW Standby
Runtime: 17 Hours @ 75% Load
Certifications: Global Standard Compliance (ISO, CE, SONCAP, etc.)

Product Overview

The JT-100KW is a high-performance entry-level industrial generator powered by the reliable Yuchai YC4A190-D30 engine. Designed to provide industrial-grade stability at an entry-level budget, this unit is the perfect choice for small factories, telecom base stations, and commercial backup systems. With its 500-hour maintenance cycle and superior power quality, it offers a robust, cost-effective solution for users who demand long-term reliability without compromise.

Technical Specifications

Category	Specification
Model	JT‑100KW
Prime Power	100 kW / 125 kVA
Standby Power	110 kW / 137.5 kVA
Voltage	400/230 V
Rated Current	180 A
Frequency	50 Hz
Engine Model	Genuine Yuchai YC4A190‑D30, 4‑Cylinder In‑Line Turbocharged
Displacement	4.837 L
Bore × Stroke	108 mm × 132 mm
Compression Ratio	17.5:1
Cycle Type	4‑Cycle Diesel
Engine Rated Speed	1500 RPM
Peak Torque @1500RPM	650 N·m
Cooling System	Water‑Cooled
Engine Oil Capacity	14 L
Start Motor Voltage	24V DC
Alternator Brand & Type	Stamford/Marathon, Brushless, Self‑exciting, H‑Class Insulation, 3‑Phase
Phase & Connection	3‑Phase 4‑Wire
Power Factor	0.8 (lagging)
Insulation Class	Class H
Protection Grade	IP21
Total Harmonic Distortion (THD)	<5%
Fuel Consumption (100% Full Load)	206‑214 g/kW·h
Fuel Tank Capacity	320 L / ≈17‑hr @ 75% Load
Scheduled Maintenance Interval	500 Working Hours
Noise Level	68‑70 dB(A) @ 1 Meter
Max Operating Altitude	≤ 1000 m
Max Parallel Units	Up to 8 Units (IEC 8528‑5)
ATS Compatibility	Yes
Transport Dimensions	4000 × 1800 × 2200 mm
Overall Weight	2.9 t
Certifications	ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI
Lead Time	45‑50 Working Days + 40‑50 Days Ocean Freight
Payment Term	30% Advance, 70% Before Shipment

Core Advantages

1. Premium Industrial Standards

Don't let the entry-level budget fool you. By utilizing genuine Yuchai engines and premier alternators, the JT-100KW delivers true industrial-grade performance with a 10% overload margin, avoiding the power attenuation common in low-cost alternatives.

2. 650 N·m Anti-Stall Torque

With a robust 650 N·m torque reserve, this unit handles the sudden surge of multiple motors (pumps, fans, compressors) starting simultaneously, preventing the annoying shutdowns that plague lesser generators.

3. 17-Hour Extended Autonomy

The 320L fuel tank coupled with exceptional efficiency provides 17 hours of continuous power. This makes it an ideal "install and forget" solution for remote telecom stations and isolated facilities, significantly reducing site visits.

4. Clean Power for Sensitive Electronics

With THD<5%, the power output is safe for modern communication devices, medical equipment, and precision office electronics, ensuring your sensitive hardware never experiences harmonic-related interference.

5. 500-Hour Maintenance Interval

By extending the service cycle to 500 hours, we minimize your ongoing operational costs and labor requirements—a vital advantage for high-utilization users and distributed multi-site operations.
