JTQZ-160 Water Well Drill Rig

Overview

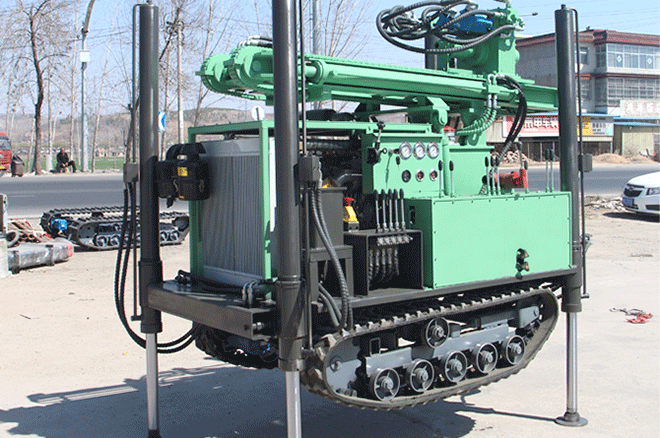

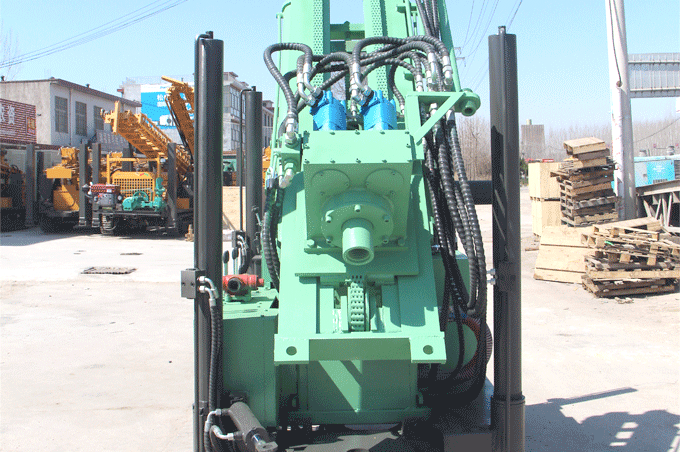

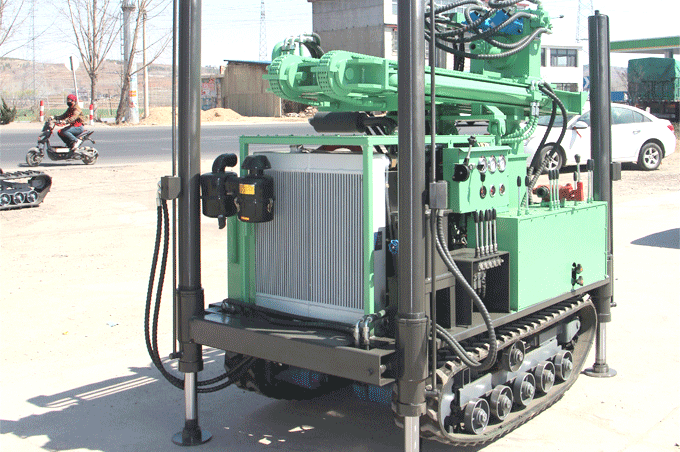

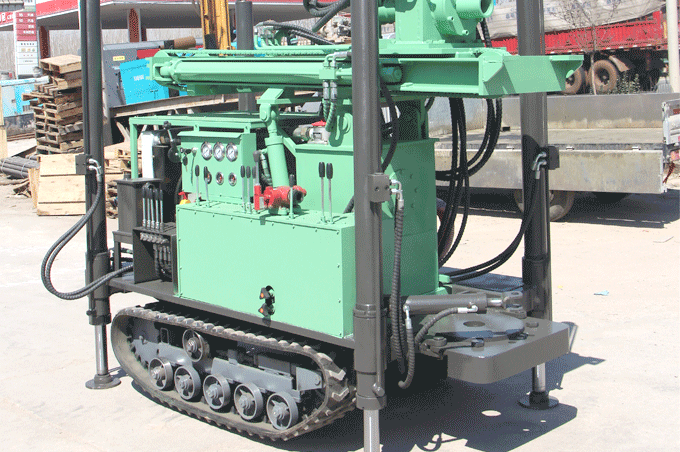

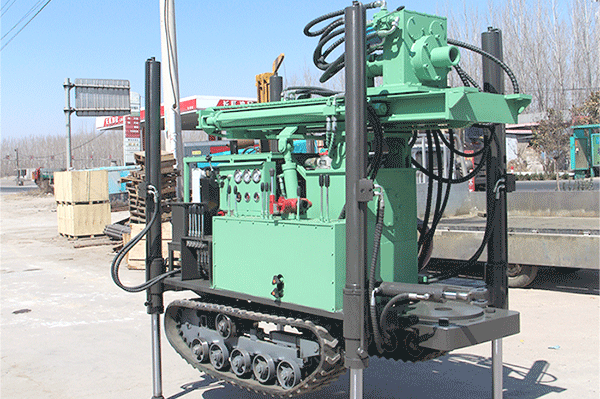

The JTQZ-160 is a pneumatic crawler water well drill rig built for shallow-to-medium depth drilling in a range of geological conditions. With a 160 m drilling depth, 138-203 mm drilling diameter and 73 kW Yuchai engine, it is suited to agricultural irrigation, rural water supply and small industrial drilling projects.

Its rubber track chassis supports 2.5 km/h travel speed and 30° maximum gradeability for movement across rough and remote terrain. The 12 t lifting power and 2 m one-time advancement length support efficient rod handling and steady penetration across shifting site conditions.

Specifications

Key Features

1. 160 m Depth

The JTQZ-160 drills to 160 m with a 138-203 mm diameter range, covering the depth and bore size requirements of most agricultural and small industrial water well projects.

2. 73 kW Yuchai Engine

The 73 kW Yuchai engine drives stable penetration in sand, gravel and soft rock, keeping drilling progress consistent across varied geological conditions.

3. 12 t Lifting Power

With 12 t of lifting capacity, the rig handles rod strings at depth without straining the hoisting system, reducing risk of stuck-pipe downtime during deeper drilling.

4. 2 m Advance per Pass

A 2 m one-time advancement length per drill run reduces the number of rod-handling cycles per shift, helping the crew maintain a more consistent daily drilling rate.

5. Crawler Mobility

The rubber track chassis travels at 2.5 km/h and handles 30° slopes, giving the rig access to remote agricultural land, hillside sites and unimproved rural terrain where wheeled equipment cannot reach.

Get a Quote

Contact us for full drilling specifications, configuration details and a quote based on your project requirements.
