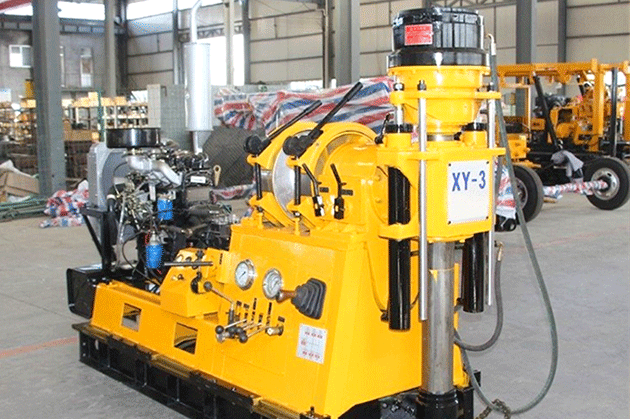

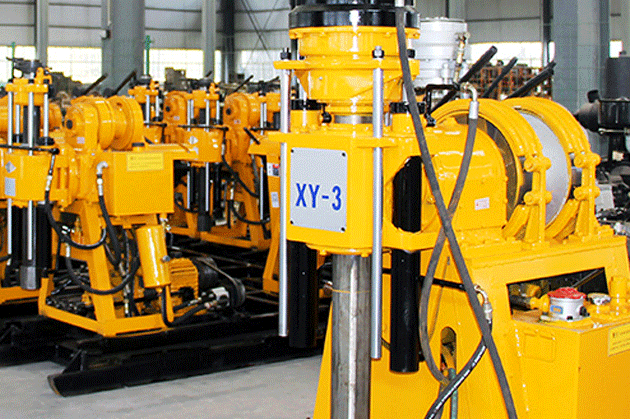

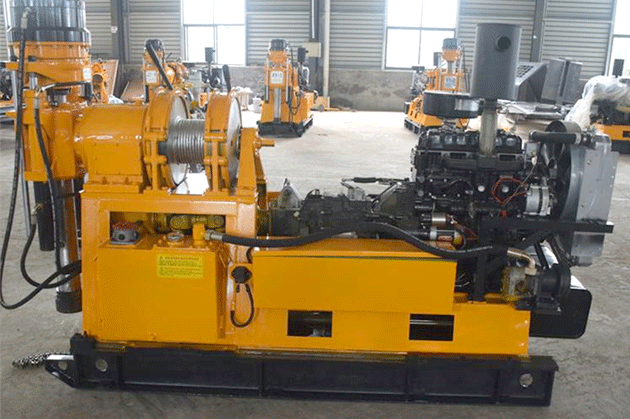

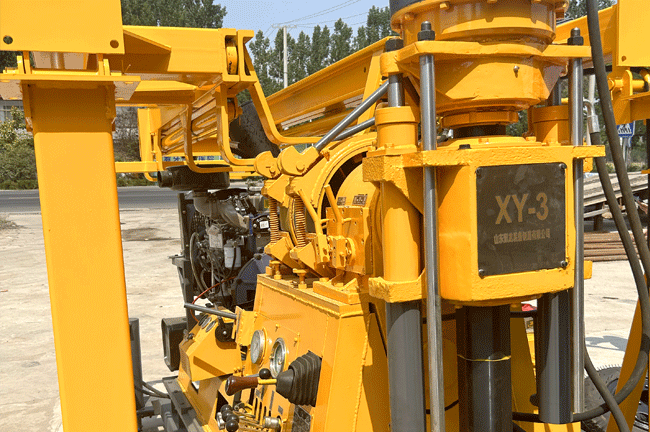

JTXY-3 Hydraulic Drill Rig

Overview

The JTXY-3 hydraulic drill rig is built for up to 600 m drilling in geological  exploration, foundation engineering and small water well projects. With a  75-300 mm drilling diameter range, a 65°-90° drilling angle and 6 t vertical  shaft lifting capacity, it suits crews that need deeper drilling reach,  flexible operating angles and stable handling performance across varied ground  conditions.

Specifications

Key Features

1. Reaches 600 m Depth

With a drilling depth rated at 600 m, the JTXY-3 is positioned for deeper  drilling work than smaller mid-range rigs. It gives contractors more reach for  exploration, engineering investigation and water-related drilling projects.

2. 65°-90° Drill Angle

A 65°-90° drilling angle range allows both vertical and inclined drilling  setups. That makes the rig more adaptable on projects where bore direction and  site layout require more than a straight vertical hole.

3. Up to 300 mm Holes

The 75-300 mm drilling diameter range supports a broad spread of bore sizes,  from smaller final holes to larger opening diameters. This gives the machine  flexibility across exploration, testing and light water well applications.

4. 6 t Shaft Lift

A 6 t vertical shaft lifting capacity provides solid lifting support for drill  tools and routine rod handling. It helps the JTXY-3 maintain stable operating  performance on deeper jobs that need dependable lifting control.

5. 4 t Rope Hoist

The rig offers 4 t single rope lifting capacity with a 0.5-1.9 m/s lifting  speed, giving it stronger hoisting support during field work. Together with a  50 m drum capacity, it adds useful handling capability for daily drilling  operations.

Get a Quote

Contact us for pricing, specifications and configuration details of the  JTXY-3 hydraulic drill rig.
