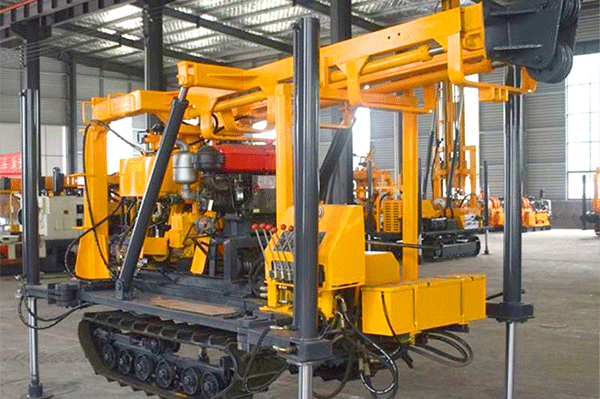

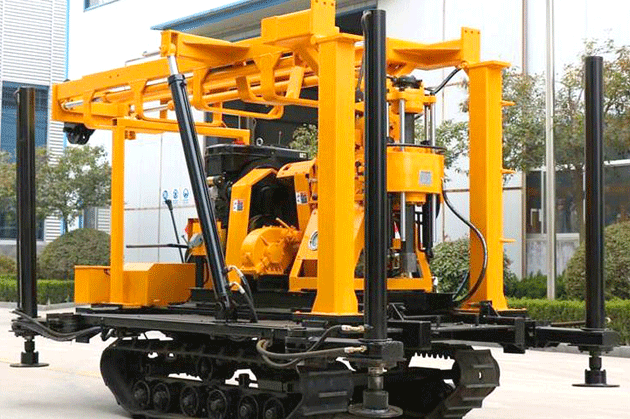

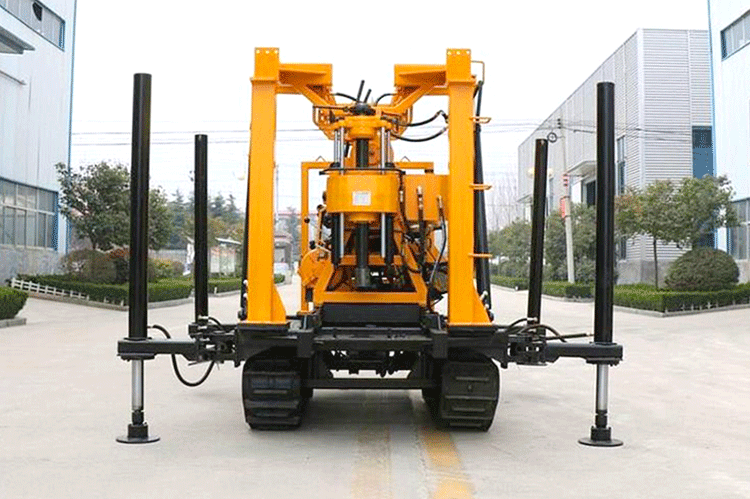

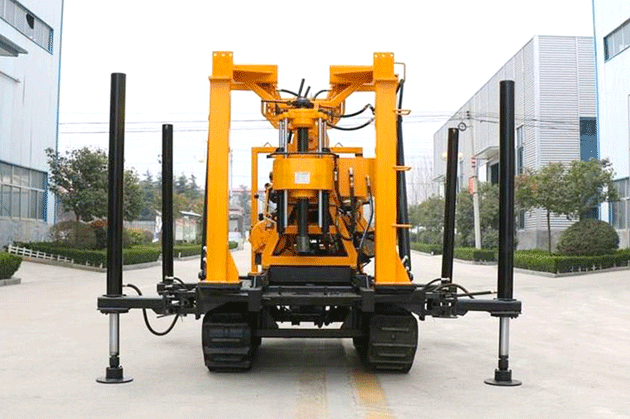

JTXY-200-2 Core Drill Rig

Overview

The JTXY-200-2 core drill rig is built for geological exploration, core  sampling, foundation investigation and civil water well drilling. Based on  the listed specifications, it supports up to 300 m drilling depth, 75-300 mm  opening hole diameters, 50/60 mm drill rods and a 75°-90° borehole  inclination range for flexible site applications.

Specifications

Key Features

1. Reaches 300 m Depth

The listed 300 m drilling depth gives the JTXY-200-2 enough reach for deeper  geological exploration, investigation work and civil drilling jobs without  stepping up to a much larger rig class.

2. 75-300 mm Holes

An opening hole diameter range of 75-300 mm gives the rig practical coverage  across lighter core drilling and broader borehole requirements. This helps it  adapt to different site needs with one platform.

3. 75°-90° Drill Angle

The 75°-90° borehole inclination range supports both near-vertical and  inclined drilling work. That gives operators more flexibility on uneven  terrain and job sites that need directional adjustment.

4. Dual Power Setup

The combination of a ZS1115 diesel engine rated at 16.2 kW and an 11 kW  electric motor option gives users more flexibility between field operations  and sites where electric power is available.

5. 25 kN Lift Force

A maximum vertical lifting weight of 25 kN supports daily drill string  handling and routine hoisting tasks. Together with 20 MPa gear oil pump  pressure and 160 L/min water pump displacement, it helps the rig maintain  stable working support during drilling operations.

Get a Quote

Contact us for pricing, specifications and configuration details of the  JTXY-200-2 core drill rig.
