Drilling depth:800-1400m
Main motor power: 129kW
tTotal weight:7.8T

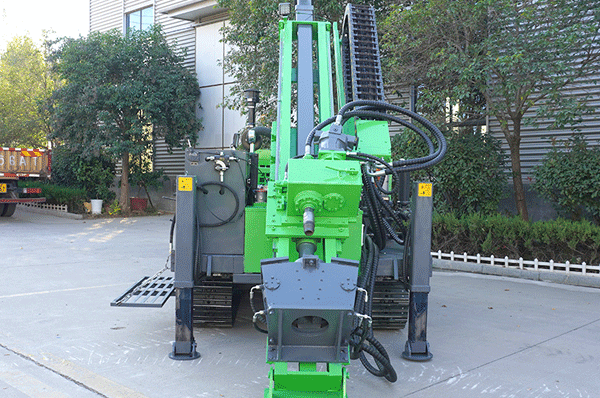

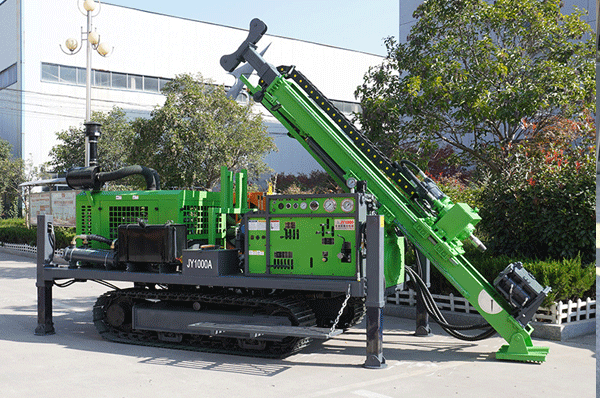

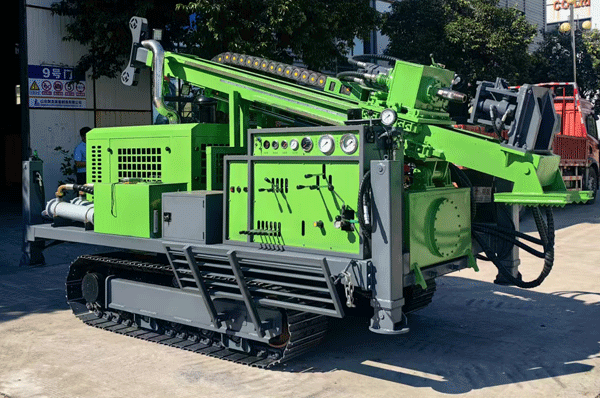

The JTYS-1000 core drill rig is a crawler-mounted hydraulic machine built for 1,200 m NTW and 1,400 m BTW wire-line coring in solid mineral prospecting, deep geological surveys, professional core sampling and precision monitoring boreholes. Based on the listed specifications, it combines 360 kN lifting capacity, 180 kN propulsion force, a 45°-90° drilling angle and 1,200 m rope capacity for demanding deep drilling work.
| Model | JTYS1000 |
| Cooling Method | Air-cooled + Water-cooled |
| Engine Model | Weichai Six-Cylinder |
| Engine Rated Power | 129 kW |
| Engine Rated Speed | 2,200 rpm |
| Maximum Torque | 2,600 N.m |
| Maximum Rotating Speed | 1,400 rpm |
| Feed Stroke | 1.8/2.0 m (Optional) |
| Lifting Capacity | 360 kN |
| Propulsion Force | 180 kN |
| Rope Capacity | 1,200 m |
| Rope Lifting Capacity | 24 kN |
| Rope Lifting Speed | 110 m/min |
| Wire Rope Diameter | 6 mm |
| Derrick Total Height | 6.6 m |
| Drilling Angle | 45°-90° |
| Slip Stroke | 1,200 mm |
| Clamp Specification | 75/89/115 |
| Maximum Gradeability | 20° |
| Maximum Travel Speed | 2 km/h |
| Transport Dimensions | 5,000 x 2,050 x 2,600 mm |
| Overall Weight | 7.8 t |
1. Up to 1,400 m Coring
Built for 1,200 m NTW and 1,400 m BTW wire-line coring, the JTYS-1000 is positioned for ultra-deep mineral exploration and survey work where higher coring reach is critical.
2. 360 kN Lift Force
A lifting capacity of 360 kN and propulsion force of 180 kN give the rig the push-pull performance needed for stable deep drilling progress and reliable drill string handling in heavier working conditions.
3. 1,200 m Rope Capacity
The 1,200 m rope capacity, together with 24 kN rope lifting capacity and 110 m/min rope lifting speed, supports efficient wire-line core retrieval and helps reduce downtime across repeated deep coring cycles.
4. 45°-90° Drill Angle
A 45°-90° drilling angle and 6.6 m derrick height give the JTYS-1000 useful flexibility for vertical and inclined drilling work. This helps crews adapt to varied borehole layouts and more demanding field conditions.
5. 129 kW Heavy Drive
The Weichai six-cylinder engine rated at 129 kW works with a dual-pump hydraulic system, 2,600 N.m maximum torque and 1,400 rpm maximum rotating speed to support heavy-duty drilling performance in ultra-deep coring applications.
Contact us for pricing, full specifications and configuration details of the JTYS-1000 core drill rig.
