PRP: 30 kW / 37.5 kVA
Standby: 33 kW / 41.25 kVA
Engine: WP2.3D33E200
Back to List
30kW Prime Power | Ultra-Compact, Mobile Power for Small-Scale & Off-Grid Applications
Engine: Weichai WP2.3D33E200 4-Cylinder
Output: 30kW Prime / 33kW Standby
Noise Level: Ultra-Quiet 62-64 dB(A)
Mobility: 1.2t Lightweight Compact Body

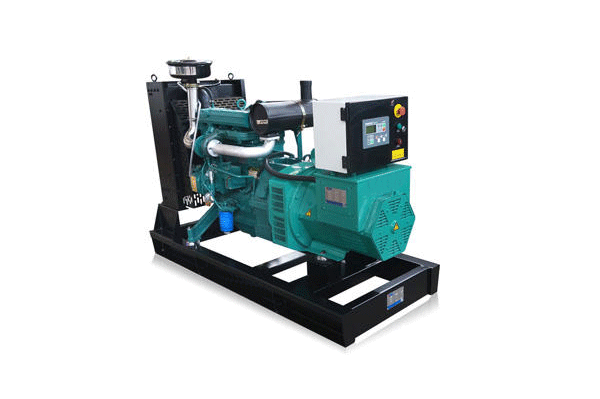

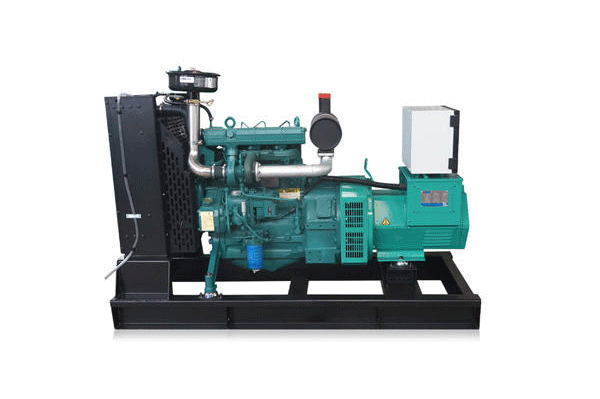

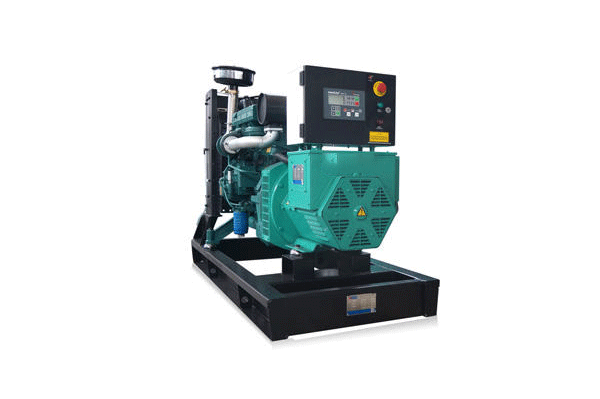

The JT-30KW is a high-precision, ultra-compact industrial power generator engineered for micro-scale portable power and emergency backup scenarios. Powered by the reliable Weichai WP2.3D33E200 engine, this unit is perfectly optimized for light-load continuous operation. Its combination of whisper-quiet noise levels, budget-friendly fuel economy, and 500-hour service intervals makes it the ideal solution for retail, farming, small construction crews, and remote telecom micro-stations. Eliminate unnecessary costs by matching your capacity exactly to your needs. The JT-30KW avoids the power waste of oversized units, offering optimal investment-to-output value for small shops, farms, and portable work teams. Specifically optimized for frequent starts/stops, this unit provides the steady torque required by small pumps and portable tools, preventing stalls and voltage dips common in generic low-power generators. With an official full-load fuel consumption of 202-210 g/kW·h, this unit is engineered to maximize profitability for small-scale operators by significantly reducing daily fuel expenditures. Perfectly compliant with noise regulations for residential and rural areas. This unit operates whisper-quiet, ensuring you can provide backup power in noise-sensitive locations like clinics and village-adjacent sites without disruption. Lightweight and compact, the JT-30KW can be moved via standard pickup truck or trailer. It requires no specialized heavy lifting equipment, providing unparalleled deployment flexibility for decentralized mobile projects. Designed for teams without dedicated electrical staff. With double the maintenance interval of standard mini-generators and easily accessible service points, routine care is simple and cost-effective. Factory-direct pricing, customized configurations (including trailer or silent canopy options), and full global support. Response guaranteed within 24 hours.Product Overview
Technical Specifications
Category Specification Model JT‑30KW Prime Power 30 kW / 37.5 kVA Standby Power 33 kW / 41.25 kVA Voltage 400/230 V Rated Current 54 A Frequency 50 Hz Engine Model Genuine Weichai WP2.3D33E200, 4‑Cylinder In‑Line Turbocharged Displacement 2.289 L Bore × Stroke 89 mm × 92 mm Compression Ratio 17.8:1 Cycle Type 4‑Cycle Diesel Engine Rated Speed 1500 RPM Peak Torque @1500RPM 220 N·m Cooling System Water‑Cooled Engine Oil Capacity 8 L Start Motor Voltage 24V DC Alternator Brand & Type Stamford/Marathon, Brushless, Self‑exciting, H‑Class Insulation, 3‑Phase Phase & Connection 3‑Phase 4‑Wire Pole Number 4 Power Factor 0.8 (lagging) Insulation Class Class H Protection Grade IP21 Total Harmonic Distortion (THD) <5% Fuel Consumption (100% Full Load) 202‑210 g/kW·h Fuel Tank Capacity 120 L Maintenance Interval 500 Working Hours Noise Level 62‑64 dB(A) @ 1 Meter Max Operating Altitude ≤ 1000 m Max Parallel Units Up to 6 Units (IEC 8528‑5) ATS Compatibility Yes Transport Dimensions 2800 × 1500 × 1800 mm Overall Weight 1.2 t Certifications ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI Lead Time 40‑45 Working Days + 40‑50 Days Ocean Freight Payment Term 30% Advance, 70% Before Shipment Core Advantages
1. Precision 30kW Micro-Scale Power
2. 220 N·m Torque for Light-Duty Cycles
3. Industry-Leading Fuel Efficiency
4. Ultra-Quiet 62-64dB Operation
5. 1.2t Fully Portable Design
6. 500-Hour Low-Maintenance Standard
Get a Custom Quote
✅ Global Quality: Certified equipment (CE, ISO) designed for extreme conditions.
✅ Constant Innovation: Over 200 patents focused on efficiency and durability.
✅ Your Trusted Partner: Direct factory supply with technical support and global logistics.
Submit your questions via the form below for a response within 1 business day.
