Lift height:10000mm
Maximum lift capacity: 5000kg
TEngine rate power:91kW
Back to List

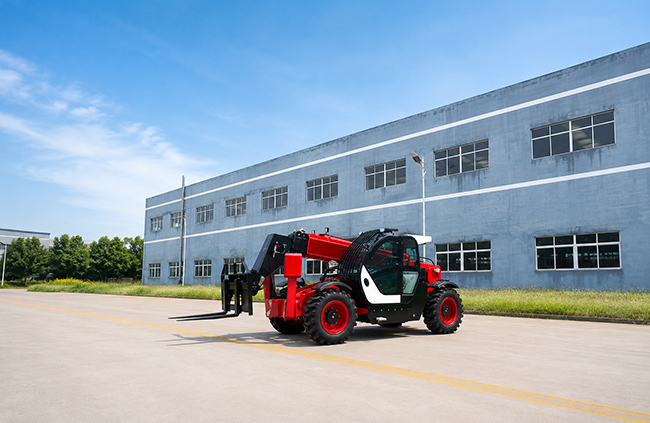

10.0m Working Reach | 5,000kg Heavy Payload | 91kW Turbo Diesel | 4WD Multi-Steering
5,000kg Capacity & 10.0m Reach: Reinforced telescopic boom lifts 5-ton structural loads up to a 10-meter elevation for heavy construction and multi-level material handling.
91kW Turbocharged Powertrain: Standard Yuchai YCD4J22T-125 diesel engine paired with an F4/R4 torque converter transmission delivers strong tractive power on rugged ground.
3-Mode All-Wheel Steering: Selectable front-wheel, 4-wheel, and crab steering modes provide a 4,250mm turning radius for navigating tight workspaces.
10.3-Ton Ballasted Stability: Heavy 10,300kg unladen chassis equipped with 16.9-24 tubeless rough-terrain tires ensures stable footing during maximum-capacity lifts.
| Model | JTTR-1050 |
| Max Lift Capacity | 5,000 kg |
| Max Lift Height | 10,000 mm (10.0 m) |
| Standard Engine | Yuchai YCD4J22T-125 (91 kW) |
| Transmission & Gears | Torque Converter + Drive Axle (F4 / R4) |
| Operating Weight | 10,300 kg |
| Drive & Steering | 4WD | Front-Wheel / 4-Wheel / Crab Steering |
| Carriage Tilt Angles | Rollback: 42.6° | Dump: 37.5° |
| Optional Engines | FPT F36 (90kW), Cummins (4BT / QSB / QSF3.8), Yuchai Euro 5 (92kW) |
| Overall Height / Width | 2,300 mm / 2,150 mm (over tires) |
| Length to Front Tires | 4,600 mm |
| Wheelbase / Front Track | 2,850 mm / 1,750 mm |
| Ground Clearance | 350 mm |
| Outside Turning Radius | 4,250 mm (over tires) |
| Tire Specification | 16.9-24 Tubeless Tires |
| Pallet Fork Length | 1,220 mm |
| Cab Internal Width | 800 mm |
| Container Packing | 2 Units / 40HQ Container |
| Lead Time & Warranty | Within 60 Working Days | 1 Year or 1,200 Working Hours |
✔ 10-Meter Multi-Level Reach: Delivers 5-ton payloads directly onto multi-tier scaffolding, high storage racks, and upper floor decks. ✔ All-Terrain Traction: 4WD drivetrain with 350mm clearance and 16.9-24 tires handles mud, gravel, and rough yard surfaces. ✔ Economical 40HQ Freight: Fits 2 full units into a single 40HQ shipping container to significantly lower ocean freight costs per unit. ✔ Global Emission Ready: Certified engine packages meet EPA Tier 4 and Euro Stage V standards for straightforward import clearance.
✅ Global Quality: Certified equipment (CE, ISO) designed for extreme conditions.
✅ Constant Innovation: Over 200 patents focused on efficiency and durability.
✅ Your Trusted Partner: Direct factory supply with technical support and global logistics.
