Lift height:10000mm
Maximum lift capacity: 3500kg
TEngine rate power:91kW
Back to List

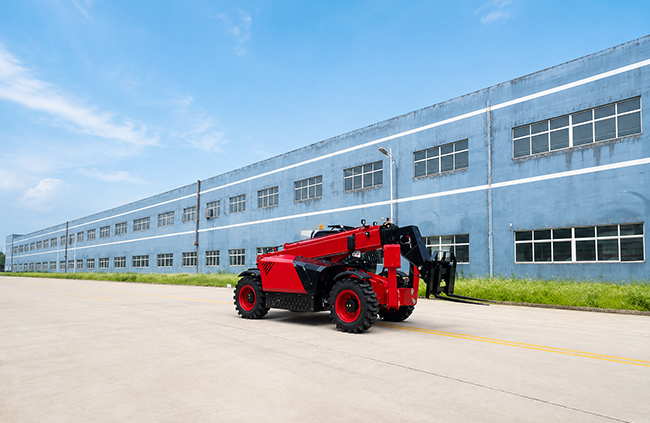

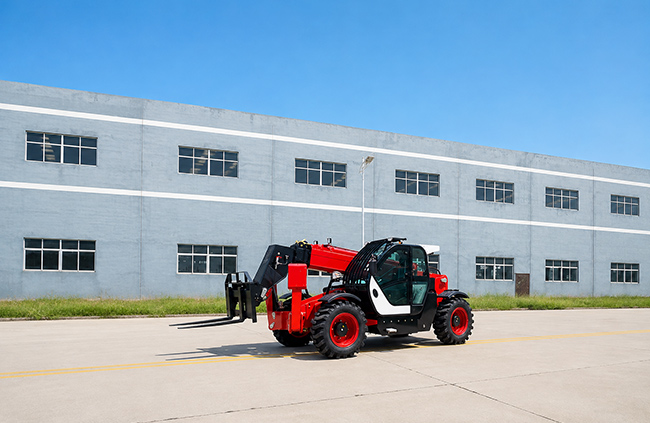

10.0m High Reach | 3,500kg Capacity | 91kW Turbo Diesel | Dual Front Stabilizers

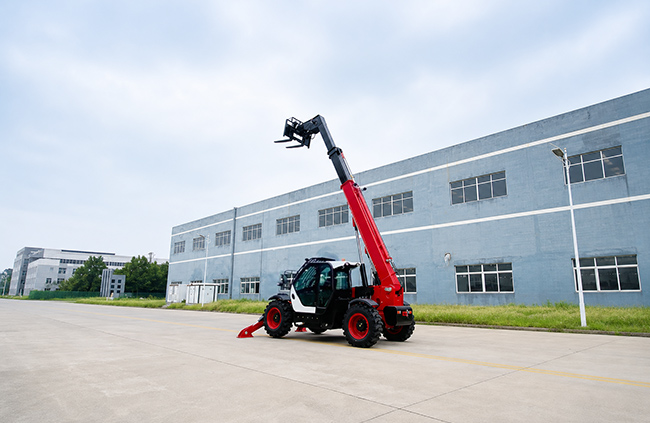

10.0m High-Reach Boom: Multi-section telescopic boom delivers 3.5-ton loads up to three stories high for roofing and multi-level structural work.
Hydraulic Front Stabilizers: Dual wide-stance outriggers anchor the 10.2-ton machine firmly to prevent tilting during high-elevation extension.
91kW Turbocharged Power: Heavy-duty Yuchai YCD4J22T-125 engine ensures steady hydraulic pressure for simultaneous boom extension and lifting.
Puncture-Proof Semi-Solid Tires: 16/70-24 semi-solid tires eliminate flat tire hazards across demolition, scrap, and rugged jobsites.
| Model | JTTR-1035 |
| Max Lift Capacity | 3,500 kg |
| Max Lift Height | 10,000 mm (10.0 m) |
| Standard Engine | Yuchai YCD4J22T-125 (91 kW) |
| Stabilizer System | Dual Front Hydraulic Outriggers |
| Operating Weight | 10,200 kg |
| Carriage Tilt Angles | Rollback: 42.6° | Dump: 37.5° |
| Optional Engines | FPT F36 (90kW), Cummins 4BT / QSB / QSF, Yuchai Euro 5 (92kW) |
| Overall Height / Width | 2,300 mm / 2,150 mm (over tires) |
| Length to Front Tires | 4,600 mm |
| Wheelbase / Front Track | 2,850 mm / 1,750 mm |
| Ground Clearance | 350 mm |
| Outside Turning Radius | 4,250 mm (over tires) |
| Tire Specification | 16/70-24 Semi-Solid Tires |
| Pallet Fork Length | 1,220 mm |
| Cab Internal Width | 800 mm |
| Warranty | 1 Year or 1,200 Working Hours |
✔ Three-Story Vertical Elevation: 10-meter lift height reaches scaffolding, high flatbeds, and multi-tier construction platforms. ✔ Anchored Lift Stability: Front hydraulic outriggers ensure safe, level operations on uncompacted or uneven soil. ✔ Heavy-Duty Scrap Yard Ready: Semi-solid tires withstand sharp rebar, nails, and concrete fragments without tire punctures. ✔ Global Emission Ready: Certified engine packages meet EPA Tier 4 and Euro Stage V requirements for trouble-free import customs.
