Lifting height: 3m
Fork length: 1220mm
Maximum lifting capacity: 3500kg

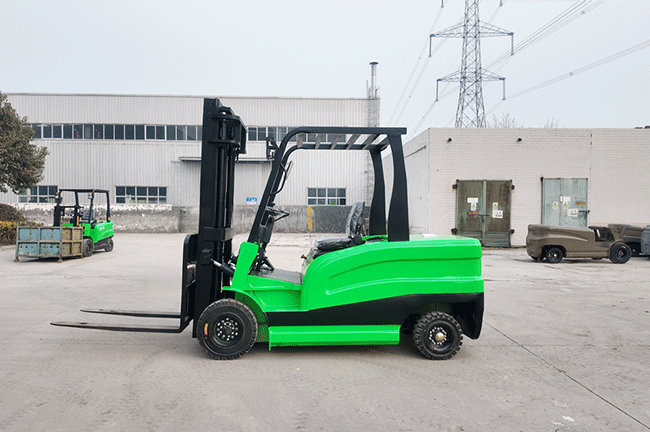

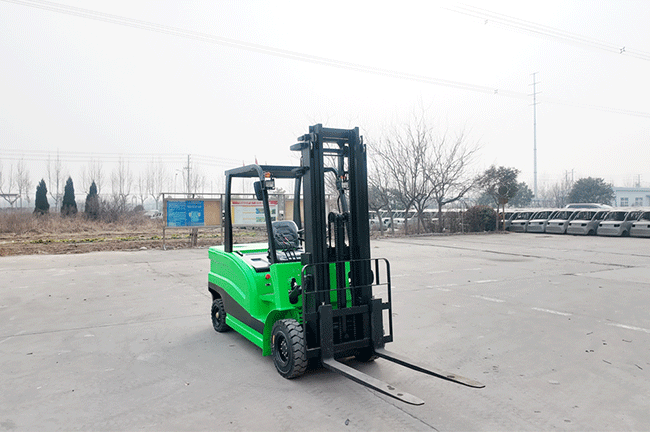

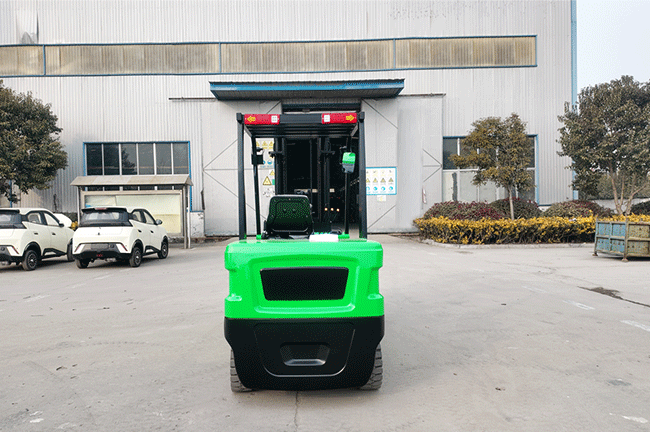

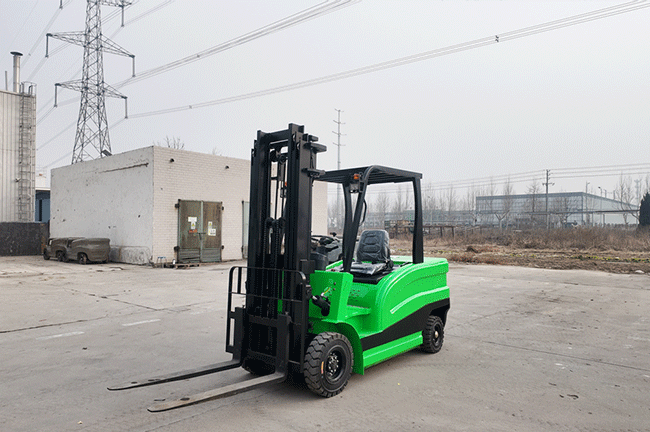

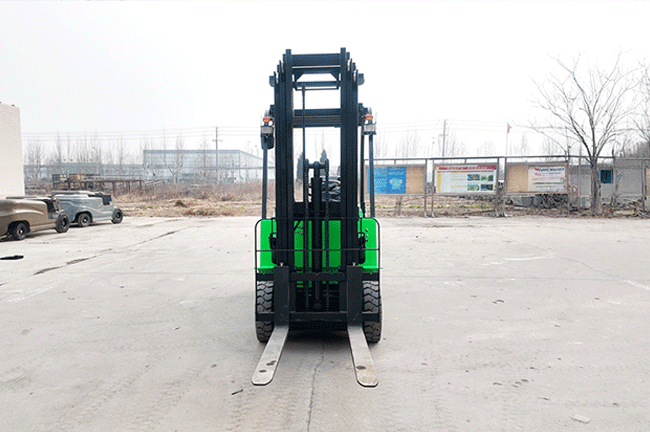

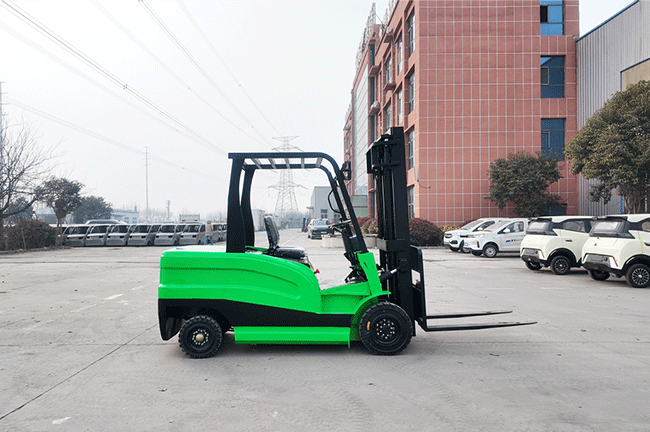

The JTDC-35 electric forklift combines a 3,500 kg rated load with a 3,000 mm lift height in a 4,300 kg chassis built for steady warehouse and factory handling. It uses a 10,000 W brushless AC drive motor, a 7,000 W hydraulic lift motor, a 60 V battery system, and 1,220 mm forged forks for daily indoor material movement.
| Model | JTDC35 |
| Rated Load Capacity | 3,500 kg |
| Lift Height | 3,000 mm (customizable) |
| Overall Length (without forks) | 2,800 mm |
| Overall Length (with forks) | 4,020 mm |
| Overall Width | 1,200 mm |
| Overall Height | 2,100 mm |
| Vehicle Weight | 4,300 kg |
| Drive Motor | 10,000 W Brushless AC Motor |
| Hydraulic Lift Motor | 7,000 W Brushless AC Motor |
| Battery Voltage | 60 V |
| Battery Pack | 10 x 73 Ah Lead-acid (Tianneng) |
| Charging Time | 5-8 hours |
| Operating Duration per Charge | 5 hours (continuous) |
| Fork Length | 1,220 mm (forged) |
| Gradeability | 15 deg |
The 3,500 kg rated load gives the JTDC-35 the capacity needed for heavier pallet, cargo, and production-line handling tasks.
A 10,000 W drive motor and 7,000 W hydraulic lift motor separate travel and lifting duties for more direct electric handling performance.
The standard 3,000 mm lift height covers routine stacking and loading work, while the listed customizable mast option adds flexibility.
The 60 V battery system with 10 x 73 Ah lead-acid batteries supports around 5 hours of continuous operation with a 5-8 hour charging time.
The 1,220 mm forged forks suit regular pallet handling and give the machine a practical front-end setup for daily warehouse movement.
A 15 deg gradeability rating helps the forklift stay usable on ramps and slight level changes inside factories, warehouses, and loading areas.
Direct factory supply available. Contact us for pricing, lead times, and shipping details.
