Lifting height: 3m
Fork length: 1220mm
Maximum lifting capacity: 1000kg

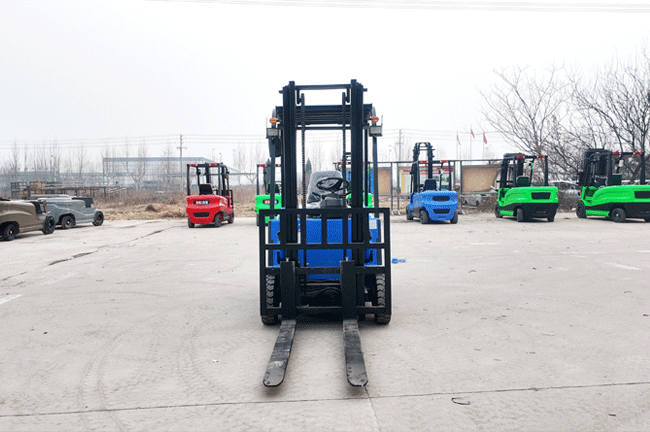

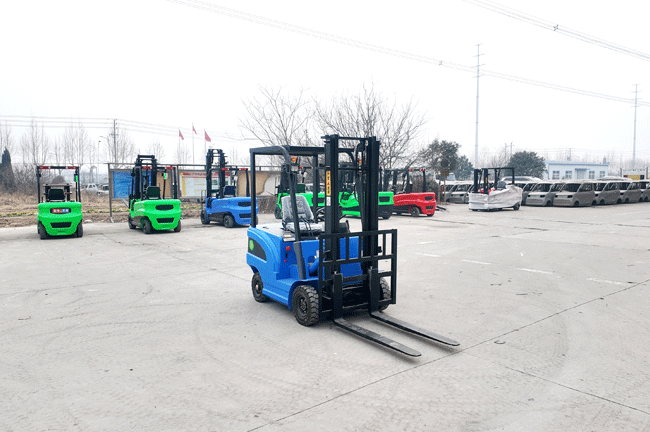

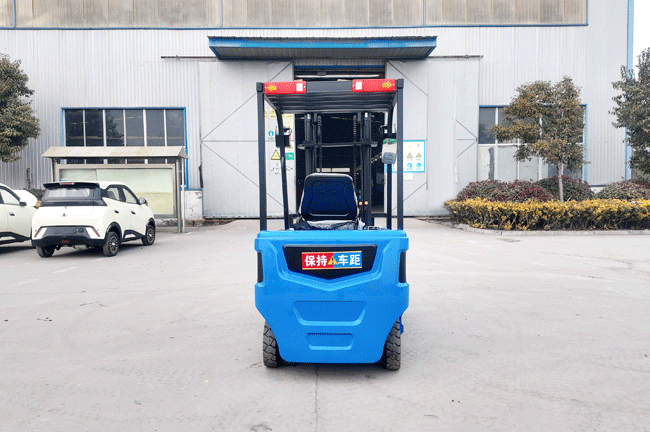

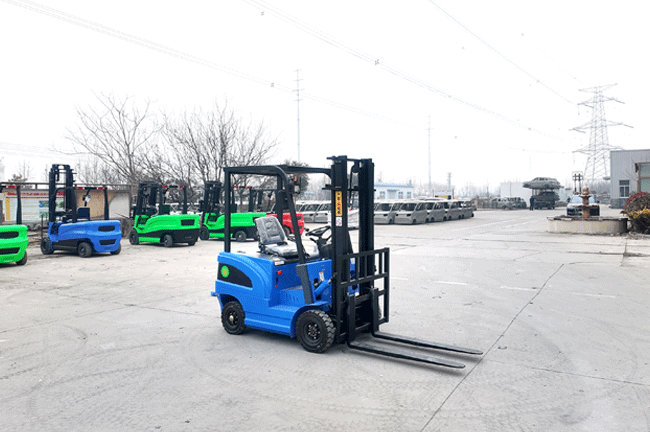

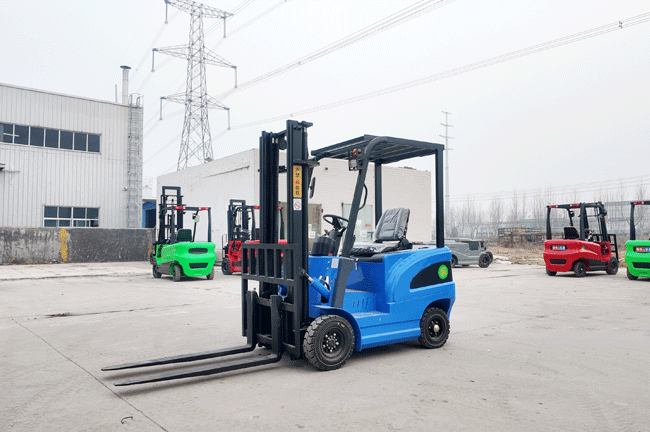

The JTDC-10 electric forklift combines a 1,000 kg rated load and 3,000 mm lift height in a 1,800 kg chassis sized at 2,200 mm without forks and 3,420 mm with forks. It uses a 2,500 W brushless AC drive motor, a 2,500 W hydraulic lift motor, a 60 V battery system, and 1,220 mm forged forks for steady daily material handling.
| Model | JTDC-10 |
| Rated Load Capacity | 1,000 kg (2,204 lbs) |
| Lift Height | 3,000 mm (customizable) |
| Overall Length (without forks) | 2,200 mm |
| Overall Length (with forks) | 3,420 mm |
| Overall Width | 1,200 mm |
| Overall Height | 2,100 mm |
| Vehicle Weight | 1,800 kg |
| Drive Motor | 2,500 W Brushless AC Motor |
| Hydraulic Lift Motor | 2,500 W Brushless AC Motor |
| Battery Voltage | 60 V |
| Battery Pack | 5 x 58 Ah Lead-acid (Tianneng) |
| Charging Time | 5-8 hours |
| Operating Duration per Charge | 5 hours (continuous) |
| Fork Length | 1,220 mm (forged) |
| Gradeability | 15 deg |
The 1,000 kg (2,204 lbs) rated load gives the JTDC-10 the lifting capacity needed for regular pallet, cargo, and warehouse handling work.
A 2,500 W drive motor and 2,500 W hydraulic lift motor separate travel and lifting output for more direct electric handling performance.
The standard 3,000 mm lift height covers routine stacking and loading tasks, while the customizable mast option adds flexibility.
With a 2,200 mm body length without forks and 1,200 mm overall width, the forklift stays easier to place and move in everyday indoor handling areas.
The 60 V battery system with 5 x 58 Ah lead-acid batteries supports about 5 hours of continuous operation with a 5-8 hour charging time.
A 15 deg gradeability rating helps the forklift stay usable on ramps and level changes in daily loading and warehouse movement.
