Lifting height: 3m
Fork length: 1220mm
Maximum lifting capacity: 2000kg

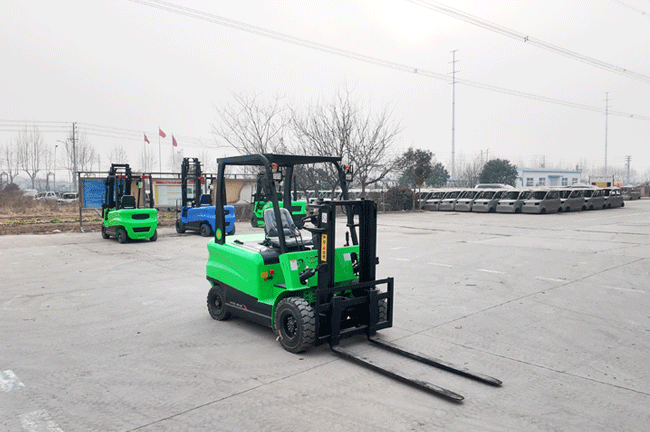

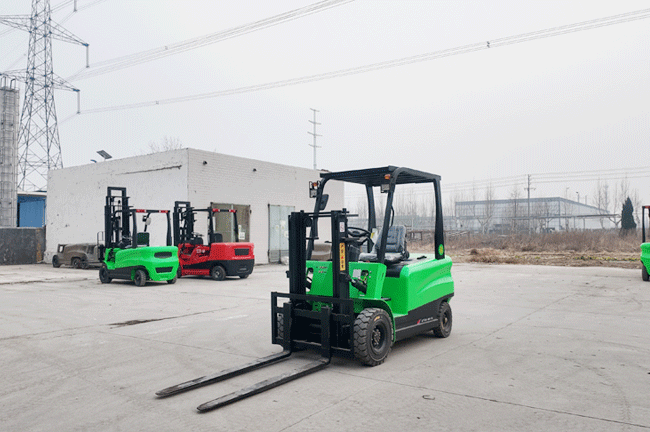

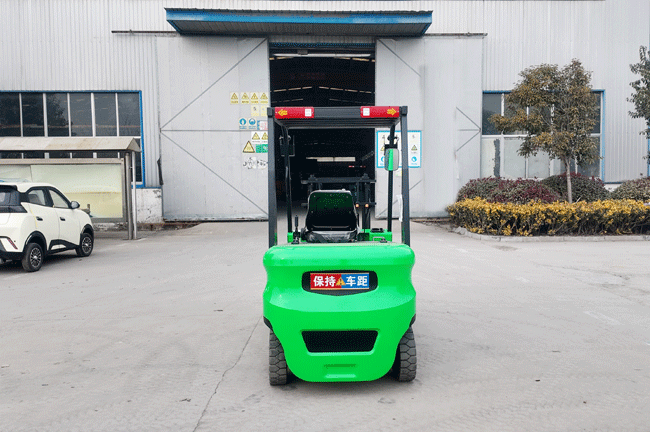

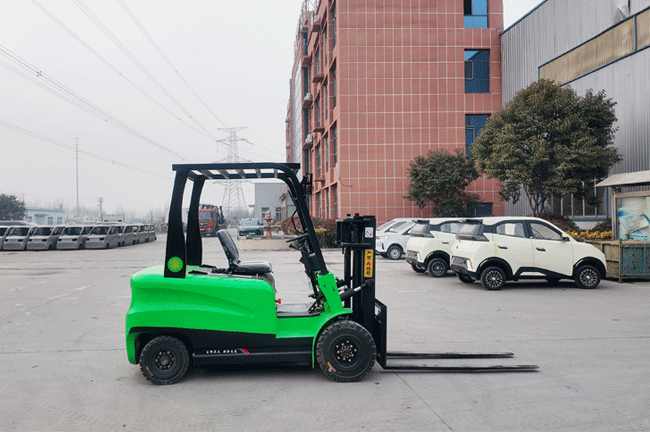

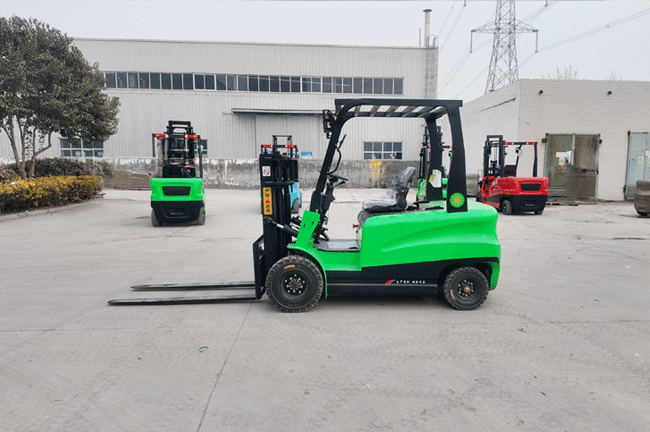

The JTDC-20 electric forklift combines a 2,000 kg rated load and 3,000 mm lift height in a 2,500 kg chassis with a 1,200 mm overall width. It uses a 4,000 W brushless AC drive motor, a 3,000 W hydraulic lift motor, a 60 V battery system, and 1,220 mm forged forks for steady daily material handling.
| Model | JTDC-20 |
| Rated Load Capacity | 2,000 kg |
| Lift Height | 3,000 mm (customizable) |
| Overall Length (without forks) | 3,000 mm |
| Overall Length (with forks) | 3,720 mm |
| Overall Width | 1,200 mm |
| Overall Height | 2,100 mm |
| Vehicle Weight | 2,500 kg |
| Drive Motor | 4,000 W Brushless AC Motor |
| Hydraulic Lift Motor | 3,000 W Brushless AC Motor |
| Battery Voltage | 60 V |
| Battery Pack | 5 x 73 Ah Lead-acid (Tianneng) |
| Charging Time | 5-8 hours |
| Operating Duration per Charge | 5 hours (continuous) |
| Fork Length | 1,220 mm (forged) |
| Gradeability | 15 deg |
The 2,000 kg rated load gives the JTDC-20 the lifting capacity needed for regular pallet, cargo, and warehouse handling work.
A 4,000 W drive motor and 3,000 W hydraulic lift motor separate travel and lifting output for more direct electric handling performance.
The standard 3,000 mm lift height covers routine stacking and loading tasks, while the customizable mast option adds flexibility.
The 60 V battery system with 5 x 73 Ah lead-acid batteries supports about 5 hours of continuous operation with a 5-8 hour charging time.
The 1,220 mm forged forks suit standard pallet handling and match the forklift's 2-ton working position.
A 15 deg gradeability rating helps the forklift stay usable on ramps and level changes in daily loading and warehouse movement.
Direct factory supply available. Contact us for pricing, lead times, and shipping details.
