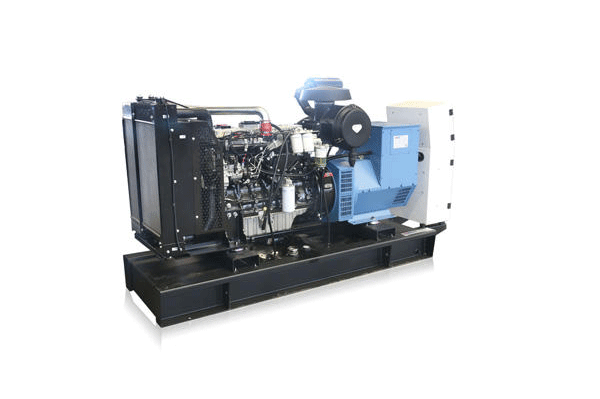

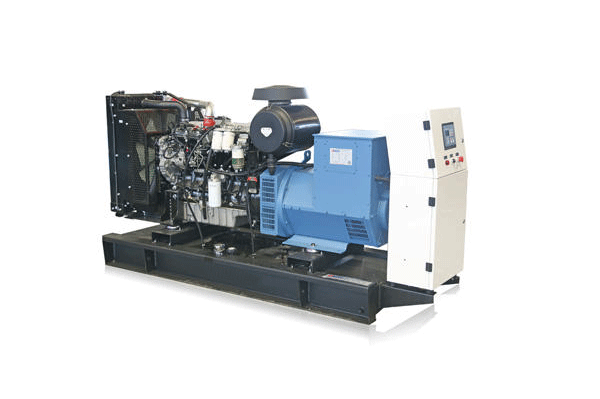

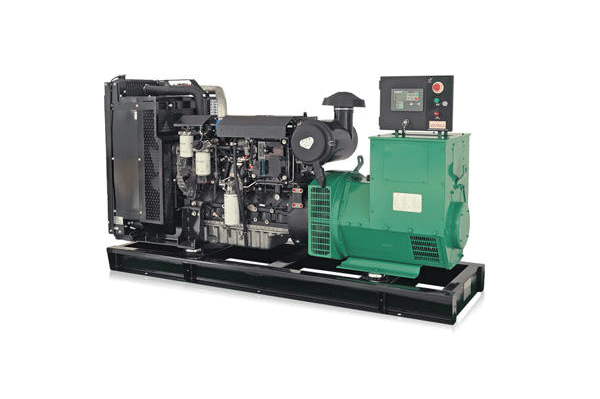

JT-150KW Perkins Industrial Generator

150kW Prime Power | Compact & Quiet Energy for Construction, Telecom & Healthcare

JT-150KW 187.5kVA Perkins generator for construction, healthcare, and industrial standby power

Engine: Perkins 1106A-70TAG4 6-Cylinder In-Line Turbocharged
Certifications: ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI
Reliability: 500-Hour Industrial Maintenance Cycle & ATS-Ready

Product Overview

The JT-150KW is the foundational unit in JUTOP's Perkins range, engineered for versatility and mission-critical reliability. Powered by the Perkins 1106A-70TAG4 engine, this 187.5kVA generator is the go-to solution for construction sites, regional hospitals, and telecom base stations. With the deepest global parts distribution network of any Perkins family, the 1106 series ensures that service and repairs are straightforward even in the most remote regions of Sub-Saharan Africa, South Asia, and SE Asia.

Technical Specifications

Category	Specification
Prime / Standby Power	150 kW / 165 kW (187.5/206.25 kVA)
Engine Model	Perkins 1106A-70TAG4 (6-Cyl Inline Turbo, 7.01L)
Rated Current	270 A
Peak Torque	820 N·m @ 1500 RPM
Fuel Consumption (100% Load)	212–220 g/kW·h
Maintenance Interval	500 Working Hours
Noise Level	70–72 dB(A) @ 1m
Dimensions (L×W×H)	3,400 × 1,500 × 1,700 mm
Overall Weight	2.8 t
Certifications	ISO, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI

Core Advantages

1. Deepest Global Parts Support

The 1106 series is the most widely distributed Perkins engine globally. From local mechanics in remote regions to regional distributors, parts and expertise for this engine family are the most accessible in the 150kW class.

2. Ultra-Quiet 70–72 dB(A)

This unit is among the quietest in its class. For hospitals, residential-adjacent construction sites, or populated telecom zones, the low-noise output often eliminates the need for expensive, specialized acoustic enclosures.

3. ATS-Ready for Unattended Backup

Pre-configured for Automatic Transfer Switch (ATS) integration, the JT-150KW ensures immediate load transfer during grid failures—crucial for healthcare and telecom facilities that cannot afford manual startup delays.

4. Logistics-Friendly Footprint

At 2.8t and 3,400mm length, this unit avoids oversize transport permits. It fits easily into standard 20-foot containers or onto flatbed trucks, significantly reducing mobilization costs across multi-site projects.

5. High-Efficiency TAG4 Engine

The TAG4 generation offers significant fuel savings over previous models. For heavy-use construction sites, the annual fuel economy pays back the price premium within the first year of operation.

6. Schedule-Aligned Maintenance

The 500-hour service cycle is perfectly optimized for construction and seasonal agricultural workflows, allowing maintenance to be performed during planned site shutdowns rather than interrupting productive hours.
