JT-640KW Perkins Industrial Generator

640kW Prime Power | Reliable Energy for Manufacturing, Mining & Commercial Infrastructure

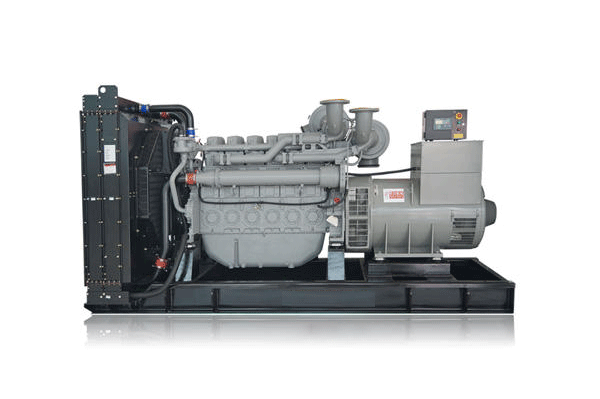

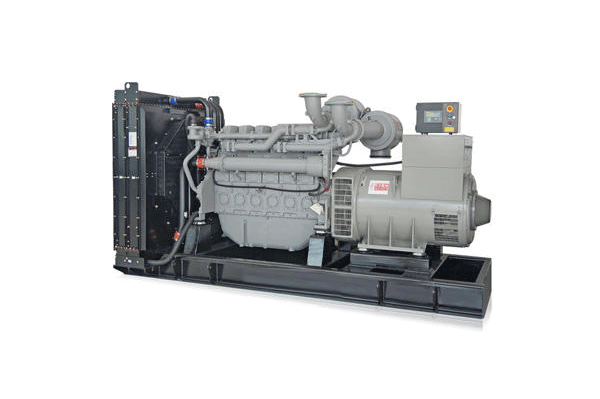

JT-640KW 800kVA Perkins generator for manufacturing and industrial power supply

Engine: Perkins 4006-23TAG3A 6-Cylinder In-Line Turbocharged
Certifications: ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI
Reliability: 500-Hour Maintenance Interval & 76-78 dB(A) Low-Noise Profile

Product Overview

The JT-640KW is the optimized solution for the sub-1000kVA market. Powered by the Perkins 4006-23TAG3A engine, this 800kVA generator provides robust 640kW prime power in a highly efficient, compact package. Its 22.92L displacement is perfectly calibrated for continuous heavy-load operations, delivering exceptional thermal stability and torque reserve without the logistical complexities of larger V-configuration sets. It is the premier choice for manufacturing plants, agricultural processing, and regional telecom hubs requiring uncompromising reliability.

Technical Specifications

Prime / Standby Power	640 kW / 704 kW (800/880 kVA)
Engine Model	Perkins 4006-23TAG3A (6-Cyl Inline Turbo, 22.92L)
Rated Current	1152 A
Peak Torque	3,400 N·m @ 1500 RPM
Fuel Consumption (100% Load)	216–224 g/kW·h
Maintenance Interval	500 Working Hours
Noise Level	76–78 dB(A) @ 1m
Dimensions (L×W×H)	5,600 × 2,100 × 2,500 mm
Overall Weight	8.8 t
Certifications	ISO, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI

Core Advantages

1. Genuine Heavy-Duty Prime Power

With 22.92L displacement, the 4006-23TAG3A operates well within its thermal envelope, ensuring continuous 640kW output even in high-ambient-temperature regions without forced derating.

2. Service-Friendly Inline Layout

The inline-6 configuration is the most widely supported diesel layout in Africa, South Asia, and SE Asia. Local mechanics are fully familiar with its service procedures, significantly reducing maintenance downtime and reliance on specialized tools.

3. 3,400 N·m Torque Reserve

An 11.5% torque improvement over previous generations allows for direct-on-line starting of large industrial motors (pumps/compressors) without the need for expensive, oversized soft-starters.

4. Urban-Compliant Noise Levels

Operating at 76–78 dB(A), this unit is 4–6 dB quieter than typical 1MW+ generators. It is ideal for installations in mixed-use commercial/residential zones, often bypassing the need for high-cost custom acoustic enclosures.

5. Standardized Fleet Maintenance

Shared consumables (filters, seals, injectors) across the Perkins 4000 series simplify inventory management for operators running mixed-capacity fleets, reducing overall annual maintenance costs.

6. Measurable Fuel ROI

The TAG3A generation provides 6–8 g/kW·h efficiency gains over predecessor models. For continuous industrial use, this translates into annual fuel savings of up to $18,000, ensuring a complete ROI on the engine upgrade within 2–3 years.
