Drilling depth: 350m
Drilling diameter: 105-400mm
Main motor power: 129kw

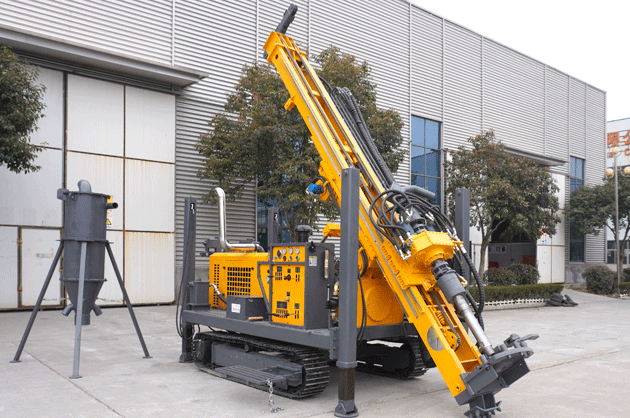

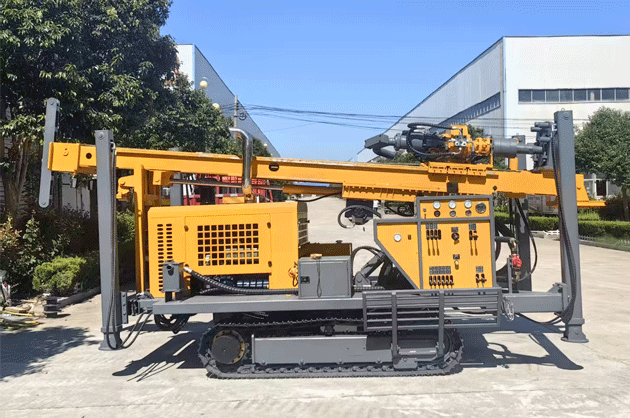

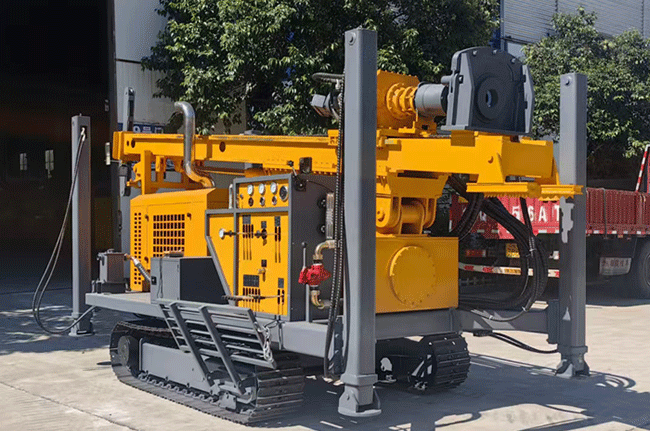

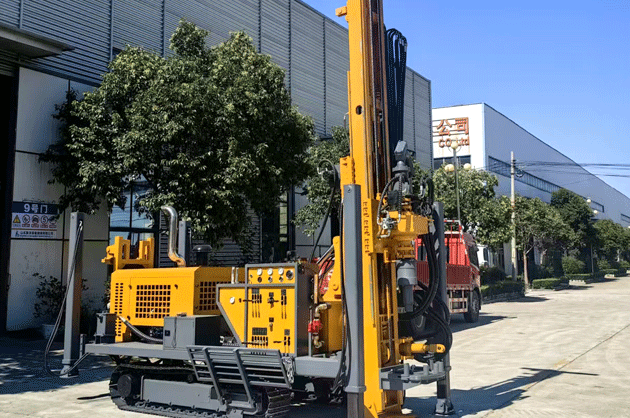

The JTRC-350 is a reverse circulation drill rig built for 350 m hard rock drilling in water well projects, geological exploration, mineral sampling and geotechnical engineering. Based on the listed specifications, it covers 105-400 mm hole diameters, supports 76/89/102 mm drill pipes, delivers 8,000-12,000 N.m rotating torque and works with a 3.3 m feed stroke for demanding mid-depth drilling jobs.
| Model | JTRC-350 |
| Drilling Depth | 350 m |
| Drilling Hole Diameter | 105-400 mm |
| Drill Pipe Diameter | 76/89/102 mm |
| Drill Pipe Length | 1.5 m / 2 m / 3 m |
| Rotating Torque | 8,000-12,000 N.m |
| Rotating Speed | 40-160 rpm |
| Feed Stroke | 3.3 m |
| Power Head Lifting Capacity | 260 kN |
| Power Head Propulsion Force | 130 kN |
| Fast Lifting Speed | 20 m/min |
| Fast Feeding Speed | 40 m/min |
| Engine Model | Weichai |
| Rated Power | 129 kW @ 2,200 rpm |
| Auxiliary Winch Lifting Capacity | 20 kN |
| Compressor Matching | 1.7-3.5 MPa, 17-42 m3/min |
| DTH Hammer | Reverse Circulation Series (Medium/High Air Pressure) |
| Travel Speed | 2-3 km/h |
| Maximum Gradeability | 25° |
| Transport Dimensions | 5,900 x 2,100 x 2,500 mm |
| Working Dimensions | 4,200 x 3,000 x 6,100 mm |
| Overall Weight | 8 t |
1. Reaches 350 m Depth
A listed drilling depth of 350 m gives the JTRC-350 practical reach for deeper water well work, mineral exploration and geotechnical drilling without moving into a much larger rig class.
2. 105-400 mm Holes
The 105-400 mm drilling hole diameter range gives the rig broad coverage across different bore sizes. Support for 76 mm, 89 mm and 102 mm drill pipes adds more flexibility when matching tools to site requirements.

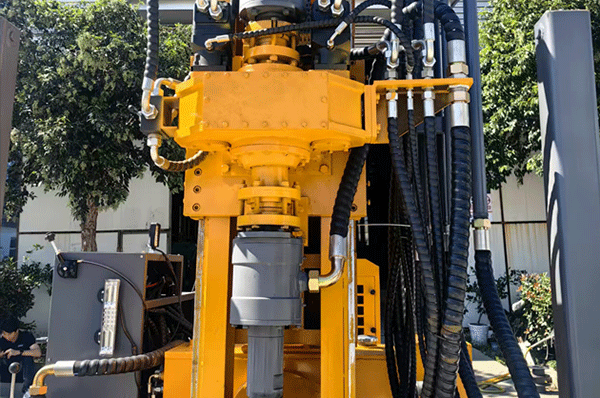

3. 260 kN Lift Force
A power head lifting capacity of 260 kN and propulsion force of 130 kN give the rig the push-pull performance needed for stable hard rock drilling and routine drill string handling in demanding field conditions.
4. RC Hammer Ready
The listed compressor matching range of 1.7-3.5 MPa and 17-42 m3/min, paired with a reverse circulation series DTH hammer setup, makes the machine ready for RC drilling configurations used in medium- and high-air-pressure work.
5. Fast Feed System
A 3.3 m feed stroke, 20 m/min fast lifting speed and 40 m/min fast feeding speed help reduce unproductive time during rod handling and support better working efficiency across daily drilling cycles.
