PRP: 100 kW / 125 kVA
Standby: 110 kW / 137.5 kVA
Engine: 6BTAA5.9-G2
Back to List
JT‑100KW Cummins Industrial Generator | 100kW Prime 125kVA Compact Standby Generator for Commercial & Telecom
100 kW Prime Power JT‑100KW Cummins Industrial GeneratorCompact high‑density standby power unit powered by genuine Cummins 6BTAA5.9‑G2 engine, optimised for commercial premises, telecom sites and retail facilities.

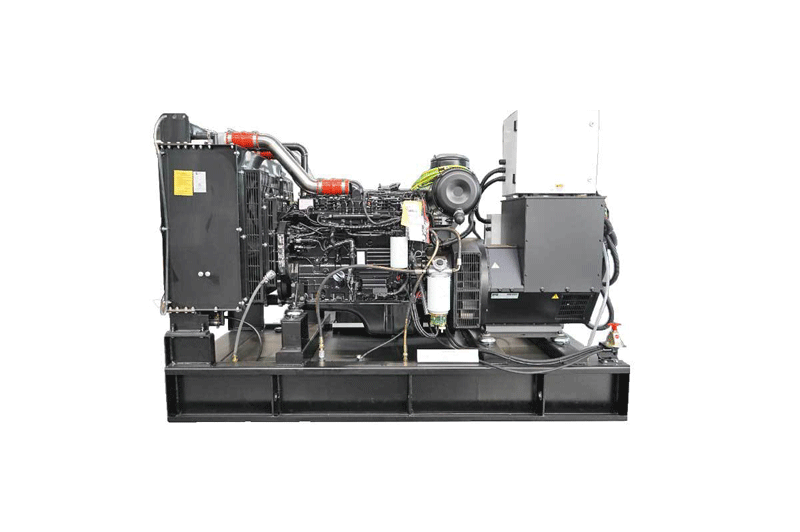

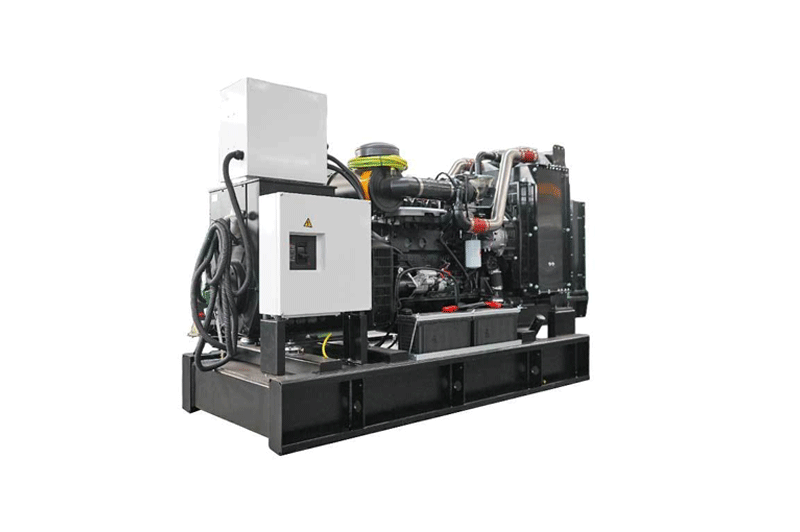

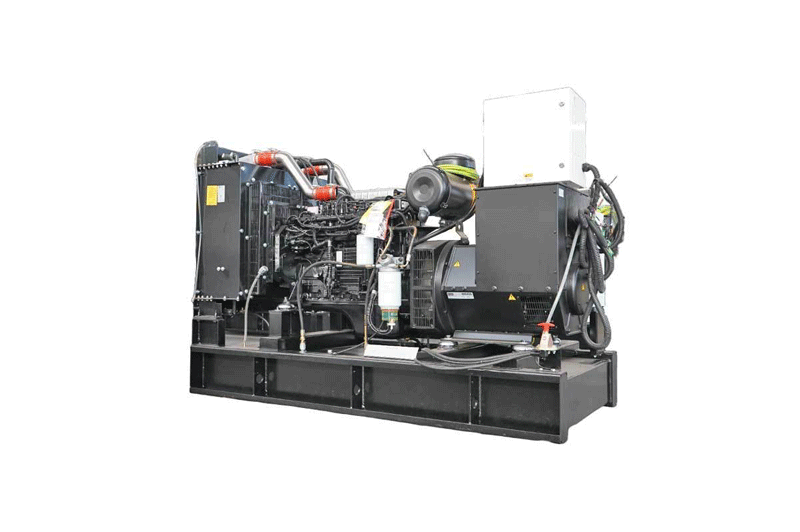

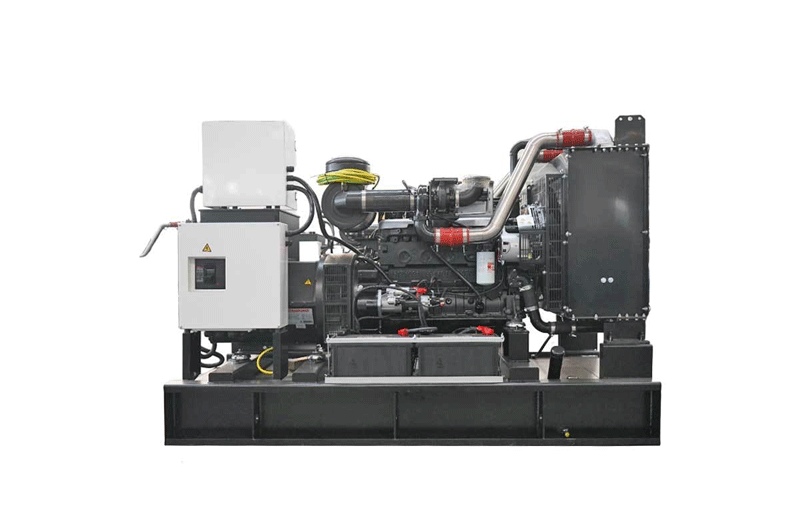

The JT‑100KW is our space‑saving Cummins‑driven generator set equipped with high‑efficiency 6BTAA5.9‑G2 turbocharged engine. Specially developed for space‑limited locations including basement plant rooms, rooftop installations and urban commercial sites, this 125kVA unit achieves an excellent balance of high power density and noise control at 74‑76dB(A).
It comes with a 500‑hour maintenance cycle and standard ATS compatibility. This generator is the ideal standby power solution for enterprises pursuing high uptime performance with minimum routine operational supervision.
| Item | Specification |
|---|---|
| Prime Power | 100 kW / 125 kVA |
| Standby Power | 110 kW / 137.5 kVA |
| Voltage / Frequency | 400/230V · 50 Hz |
| Rated Current | 180 A |
| Engine Model | Cummins 6BTAA5.9‑G2 (5.9L, 6‑Cylinder Turbocharged) |
| Peak Torque | 610 N·m @ 1500 RPM |
| Alternator | HLF100 Brushless, H‑Class |
| Fuel Consumption | 208‑216 g/kW·h (100 % Full Load) |
| Maintenance Interval | 500 Working Hours |
| Dimensions (L×W×H) | 3800 × 1500 × 2000 mm |
| Dry Weight | 3.4 t |
| Certifications | ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI |
Why Choose JT‑100KW Cummins Generator
Measuring 3800 × 1500 mm, this is one of our most space‑efficient Cummins generator packages. It fits perfectly inside basement utility rooms and rooftop slabs, where larger‑sized gensets cannot be installed due to spatial or structural constraints.
The 6BTAA5.9‑G2 engine delivers 8.9 % higher torque compared with standard engine variants. It delivers dependable motor starting performance for commercial building loads, without excessive fuel consumption caused by over‑specified larger engines.
With noise level of 74‑76dB(A) @ 1‑metre distance, JT‑100KW suits installation inside medical clinics, shopping retail centres and mixed residential‑commercial districts. No bulky extra sound‑attenuation structures are required on site.
Fitted with a 280L fuel tank, it offers approximately 9‑hour continuous running time under 75 % load. It supports full‑day backup power supply with no mid‑operation refuelling, perfectly matching power demand of commercial offices and retail outlets.
Featuring extended 500‑hour service interval tailored for standby working conditions. Maintenance contracts can cover one‑year typical operating cycles, effectively cutting overall Total Cost of Ownership (TCO) for end users.
Commercial buildings: shopping malls, retail centres, office buildings, basement machine room backup power
Healthcare sector: clinics and medical institutions emergency power supply
Telecom industry: urban base station standby power
Special installation sites: rooftop power station, space‑constrained urban facilities
Validated by full set international certifications: ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI to satisfy import clearance requirements across most global markets. We provide global technical assistance and factory‑direct logistics services. Spare parts are readily accessible in Africa, Southeast Asia and Latin America.
Obtain factory‑direct price, complete project datasheets and global shipping logistics solutions. Our team guarantees response within 24 business hours.
