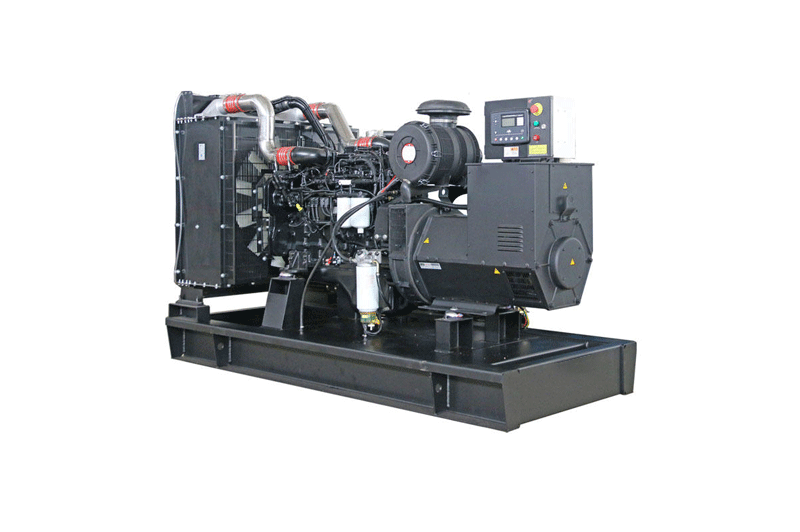

JT-200KW Cummins Industrial Generator

200kW Prime Power | Engineered for Telecom & Commercial Infrastructure


Certifications: ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI
Warranty: 12-Month Global Factory Warranty
Support: 24/7 Technical Consultation & Global Logistics

Product Overview

The JT-200KW is built on the proven Cummins NTA855-GA inline-6 platform. Designed for high-reliability environments—such as telecom base stations, retail complexes, and data centers—this generator features standard ATS integration and a 350L fuel tank for 24-hour continuous autonomy. It combines low-maintenance operation with the rugged durability required for critical power applications.

Technical Specifications

Category	Specification
Prime Power	200 kW / 250 kVA
Standby Power	220 kW / 275 kVA
Voltage / Frequency	400/230V · 50 Hz
Rated Current	360 A
Engine Model	Cummins NTA855-GA (18.9L, 6-Cyl)
Aspiration	Turbocharged
Compression Ratio	15.5:1
Peak Torque	1,630 N·m @ 1500 RPM
Fuel Consumption	172–212 g/kW·h (Load dependent)
Maintenance Interval	500 Working Hours
Fuel Tank Runtime	~24 Hours @ 50% Load (350 L)
Noise Level	78–80 dB(A) @ 1m
Dimensions (L×W×H)	4,200 × 1,700 × 2,200 mm
Dry Weight	4.8 t
Alternator Protection	IP23 / H-Class Insulation

Why Choose JT-200KW?

1. Standard ATS Integration

For telecom and commercial sites, manual switching is a risk. We include ATS compatibility as standard, ensuring millisecond-level transition during grid failure.

2. 24-Hour Backup Autonomy

The integrated 350L fuel tank is specifically sized for extended outages, matching the required backup duration for telecom hubs and retail complexes.

3. Low-Cost Maintenance

The NTA855-GA engine and 500-hour maintenance cycle minimize downtime and reduce the total cost of ownership (TCO) over the life of the unit.

4. Intelligent Remote Monitoring

Equipped with dry contacts and remote alarm transmission capabilities, this unit integrates seamlessly with your existing SCADA or building management systems.
